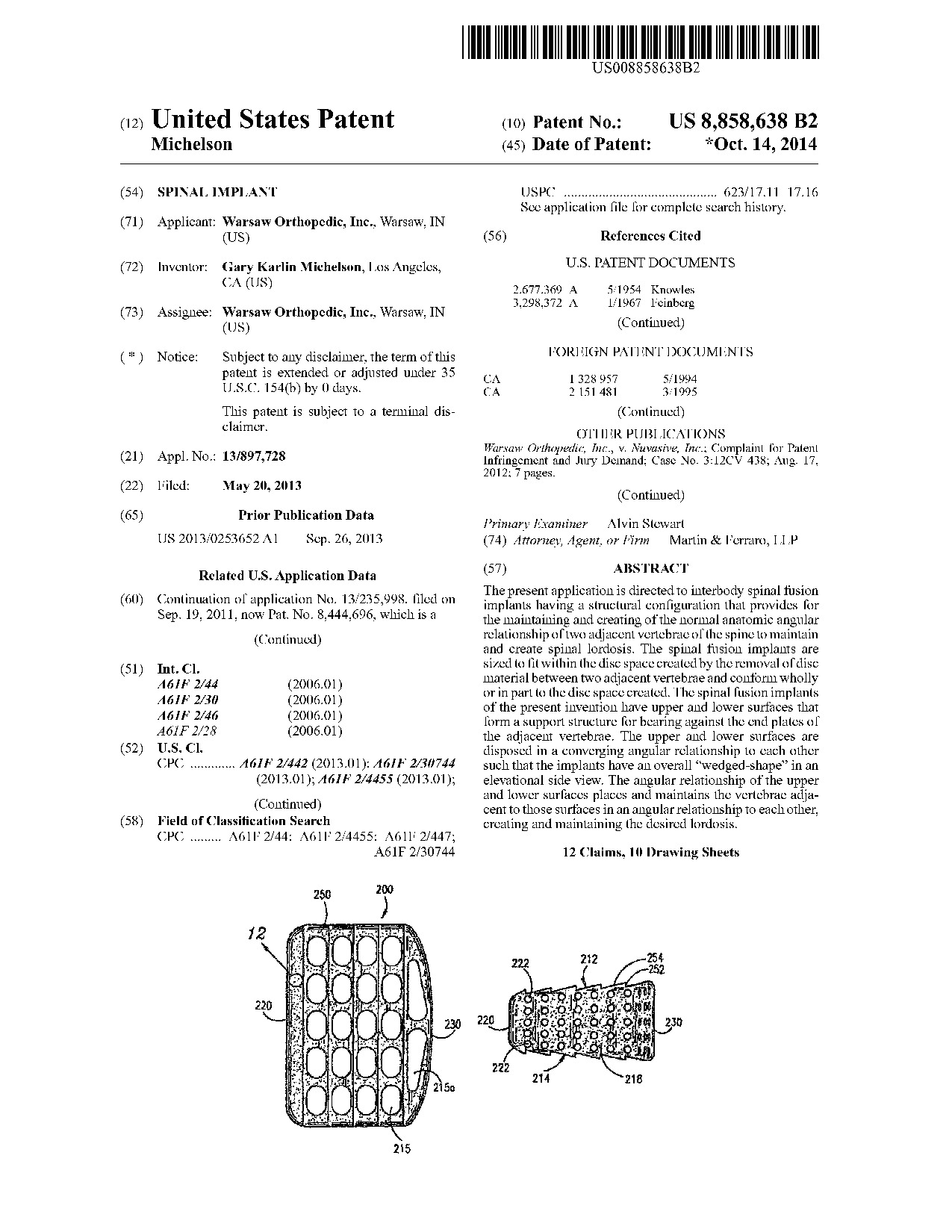

Abstract

The present application is directed to interbody spinal fusion implants having a structural configuration that provides for the maintaining and creating of the normal anatomic angular relationship of two adjacent vertebrae of the spine to maintain and create spinal lordosis. The spinal fusion implants are sized to fit within the disc space created by the removal of disc material between two adjacent vertebrae and conform wholly or in part to the disc space created. The spinal fusion implants of the present invention have upper and lower surfaces that form a support structure for bearing against the end plates of the adjacent vertebrae. The upper and lower surfaces are disposed in a converging angular relationship to each other such that the implants have an overall “wedged-shape” in an elevational side view. The angular relationship of the upper and lower surfaces places and maintains the vertebrae adjacent to those surfaces in an angular relationship to each other, creating and maintaining the desired lordosis.

Inventors: Michelson; Gary Karlin (Los Angeles, CA)
Family ID: 23914883
Appl. No.:
Filed: 2013-05-20
Current U.S. Class: 623/17.16
Current CPC Class: A61F 2/30744 (20130101); A61F 2/442 (20130101); A61F 2/4455 (20130101); A61F 2/447 (20130101); A61F 2/4611 (20130101); A61F 2/30767 (20130101); A61F 2/44 (20130101); A61F 2002/2835 (20130101); A61F 2002/30062 (20130101); A61F 2002/30143 (20130101); A61F 2002/30153 (20130101); A61F 2002/30158 (20130101); A61F 2002/30261 (20130101); A61F 2002/30271 (20130101); A61F 2002/3037 (20130101); A61F 2002/30398 (20130101); A61F 2002/30405 (20130101); A61F 2002/30434 (20130101); A61F 2002/3051 (20130101); A61F 2002/30556 (20130101); A61F 2002/30579 (20130101); A61F 2002/30599 (20130101); A61F 2002/30604 (20130101); A61F 2002/30747 (20130101); A61F 2002/30774 (20130101); A61F 2002/30777 (20130101); A61F 2002/30785 (20130101); A61F 2002/30787 (20130101); A61F 2002/30789 (20130101); A61F 2002/30797 (20130101); A61F 2002/30836 (20130101); A61F 2002/30841 (20130101); A61F 2002/30843 (20130101); A61F 2002/30904 (20130101); A61F 2002/3092 (20130101); A61F 2002/4475 (20130101); A61F 2002/4485 (20130101); A61F 2002/449 (20130101); A61F 2002/4629 (20130101); A61F 2210/0004 (20130101); A61F 2220/0025 (20130101); A61F 2220/0033 (20130101); A61F 2220/0041 (20130101); A61F 2230/0017 (20130101); A61F 2230/0019 (20130101); A61F 2230/0026 (20130101); A61F 2230/0082 (20130101); A61F 2250/0009 (20130101); A61F 2250/0063 (20130101); A61F 2310/00796 (20130101); Y10S 606/907 (20130101); Y10S 606/90 (20130101); Y10S 606/908 (20130101)
Current International Class: A61F 2/44 (20060101)
Field of Search: ;623/17.11-17.16

Claims

I claim:

1. A spinal fusion implant for insertion between a first vertebra and a second vertebra adjacent the first vertebra, the first vertebra having a generally vertically extending firstperipheral wall and a first endplate and the second vertebra having a generally vertically extending second peripheral wall and a second endplate, wherein the implant comprises: a first terminal part defining a trailing face, a first bearing surfaceadapted to bear against a portion of the first endplate, and an opposite second bearing surface adapted to bear against a portion of the second endplate, said trailing face extending between said first bearing surface and said second bearing surface,said trailing face having a recessed portion and a threaded opening configured to receive an insertion instrument for inserting said implant between the first vertebra and the second vertebra; a second terminal part opposite said first terminal part,said second terminal part having an insertion face extending between a third bearing surface adapted to bear against a portion of the first endplate and a fourth bearing surface adapted to bear against a portion of the second endplate, said implanthaving a longitudinal axis extending through said trailing face of said first terminal part and said insertion face of said second terminal part, and having a cross section in a first plane extending through said first bearing surface and said secondbearing surface, and along the longitudinal axis, said implant having a length between said trailing face of said first terminal part and said insertion face of said second terminal part and parallel to the longitudinal axis, said implant having a widthand a height each perpendicular to the length of said implant, the width of said implant being greater than the height of said implant; a first side and an opposite second side, said first side and said second side extending from said first terminalpart to said second terminal part, portions of said first side and said second side being substantially flat, said substantially flat portions intersecting a second plane that is perpendicular to the first plane and extends through said insertion faceand said trailing face, wherein said substantially flat portions of said first side and said second side are symmetrical about the first plane; an opening between said trailing face and said insertion face and between said first and second sides topermit for the growth of bone through said implant from the first vertebra to the second vertebra; upper and lower bearing surfaces each having a length measured parallel to the longitudinal axis of said implant, said upper bearing surface being adaptedto bear against a portion of the first endplate, said lower bearing surface being adapted to bear against a portion of the second endplate, said upper and lower bearing surfaces having portions proximate each of said first and second sides and beingconvex along the entire length of said upper and lower bearing surfaces relative to the second plane and in a direction parallel to the longitudinal axis, said convex portions of said upper and lower bearing surfaces having a convex curvature generallyconforming to the first and second endplates, respectively, said trailing face having a height less than and measured parallel to a maximum height measured between said upper and lower bearing surfaces proximate one of said first and second sides; a topincluding said first bearing surface, said third bearing surface, and said upper bearing surface, a bottom including said second bearing surface, said fourth bearing surface, and said lower bearing surface, said top and said bottom each having portionsproximate each of said first and second sides and being convex relative to the second plane and in the direction parallel to the longitudinal axis, said convex portions of said top and said bottom having a convex curvature generally conforming to thefirst and second endplates, respectively, along a majority of the length of said implant, said convex portions of said top and said bottom including said convex portions of said upper and lower bearing surfaces, said opening extending through saidimplant from said top to said bottom; ratchetings on each of said upper and lower bearing surfaces adapted to engage the first vertebra and the second vertebra, respectively, each of said ratchetings having a ridge oriented in a direction generallyparallel to the width of said implant, said ratchetings on each of said upper and lower bearing surfaces having a forward facing facet facing an insertion direction and angled to afford forward movement of said implant and a rearward facing facet angledto prevent said implant from backing out in a direction opposite to the insertion direction; and said opening of said implant being adapted to hold bone fusion promoting materials.

2. The implant of claim 1, wherein said implant has a plurality of openings between said trailing face and said insertion face and between said first and second sides to permit for the growth of bone through said implant from the first vertebrato the second vertebra.

3. The implant of claim 1, wherein said convex portions of said upper and lower bearing surfaces are convex along a continuous uninterrupted majority of the lengths of said upper and lower bearing surfaces, said convex portions of said upperand lower bearing surfaces being immediately adjacent said first and second sides.

4. A spinal fusion implant for insertion between a first vertebra and a second vertebra adjacent the first vertebra, the first vertebra having a generally vertically extending first peripheral wall and a first endplate and the second vertebrahaving a generally vertically extending second peripheral wall and a second endplate, wherein the implant comprises: a first terminal part defining a trailing face, a first bearing surface adapted to bear against a portion of the first endplate, and anopposite second bearing surface adapted to bear against a portion of the second endplate, said trailing face extending between said first bearing surface and said second bearing surface, said trailing face having a recessed portion and a threaded openingconfigured to receive an insertion instrument for inserting said implant between the first vertebra and the second vertebra; a second terminal part opposite said first terminal part, said second terminal part having an insertion face extending between athird bearing surface adapted to bear against a portion of the first endplate and a fourth bearing surface adapted to bear against a portion of the second endplate, said implant having a longitudinal axis extending through said trailing face of saidfirst terminal part and said insertion face of said second terminal part, and having a cross section in a first plane extending through said first bearing surface and said second bearing surface, and along the longitudinal axis, said implant having alength between said trailing face of said first terminal part and said insertion face of said second terminal part and parallel to the longitudinal axis, said implant having a width and a height each perpendicular to the length of said implant; a firstside and an opposite second side, said first side and said second side extending from said first terminal part to said second terminal part, portions of said first side and said second side being substantially flat, said substantially flat portionsintersecting a second plane that is perpendicular to the first plane and extends through said insertion face and said trailing face, wherein said substantially flat portions of said first side and said second side are symmetrical about the first plane; an opening between said trailing face and said insertion face and between said first and second sides to permit for the growth of bone through said implant from the first vertebra to the second vertebra; upper and lower bearing surfaces each having alength measured parallel to the longitudinal axis of said implant, said upper bearing surface being adapted to bear against a portion of the first endplate, said lower bearing surface being adapted to bear against a portion of the second endplate, saidupper and lower bearing surfaces having portions proximate each of said first and second sides and being convex along the entire length of said upper and lower bearing surfaces relative to the second plane and in a direction parallel to the longitudinalaxis, said convex portions of said upper and lower bearing surfaces having a convex curvature generally conforming to the first and second endplates, respectively, the width of said implant being greater than the height measured between said upper andlower bearing surfaces proximate one of said first and second sides of said implant; a top including said first bearing surface, said third bearing surface, and said upper bearing surface, a bottom including said second bearing surface, said fourthbearing surface, and said lower bearing surface, said top and said bottom each having portions proximate each of said first and second sides and being convex relative to the second plane and in the direction parallel to the longitudinal axis, said convexportions of said top and said bottom having a convex curvature generally conforming to the first and second endplates, respectively, along a majority of the length of said implant, said convex portions of said top and said bottom including said convexportions of said upper and lower bearing surfaces, said opening extending through said implant from said top to said bottom; ratchetings on each of said upper and lower bearing surfaces adapted to engage the first vertebra and the second vertebra,respectively, each of said ratchetings having a ridge oriented in a direction generally parallel to the width of said implant, said ratchetings on each of said upper and lower bearing surfaces having a forward facing facet facing an insertion directionand angled to afford forward movement of said implant and a rearward facing facet angled to prevent said implant from backing out in a direction opposite to the insertion direction; and said opening of said implant being adapted to hold bone fusionpromoting materials.

5. The implant of claim 4, wherein said implant has a plurality of openings between said trailing face and said insertion face and between said first and second sides to permit for the growth of bone through said implant from the first vertebrato the second vertebra.

6. The implant of claim 4, wherein said convex portions of said upper and lower bearing surfaces are convex along a continuous uninterrupted majority of the lengths of said upper and lower bearing surfaces, said convex portions of said upperand lower bearing surfaces being immediately adjacent said first and second sides.

7. A lordotic spinal fusion implant for insertion between a first vertebra and a second vertebra adjacent the first vertebra, the first vertebra having a generally vertically extending first peripheral wall and a first endplate and the secondvertebra having a generally vertically extending second peripheral wall and a second endplate, wherein the implant comprises: a first terminal part defining a trailing face, a first bearing surface adapted to bear against a portion of the first endplate,and an opposite second bearing surface adapted to bear against a portion of the second endplate, said trailing face extending between said first bearing surface and said second bearing surface; a second terminal part opposite said first terminal part,said second terminal part having an insertion face extending between a third bearing surface adapted to bear against a portion of the first endplate and a fourth bearing surface adapted to bear against a portion of the second endplate, said implanthaving a longitudinal axis extending through said trailing face of said first terminal part and said insertion face of said second terminal part, and having a cross section in a first plane extending through said first bearing surface and said secondbearing surface, and along the longitudinal axis, said implant having a length between said trailing face of said first terminal part and said insertion face of said second terminal part and parallel to the longitudinal axis, said implant having a widthand a height each perpendicular to the length of said implant; a first side and an opposite second side, said first side and said second side extending from said first terminal part to said second terminal part, portions of said first side and saidsecond side being substantially flat, said substantially flat portions intersecting a second plane that is perpendicular to the first plane and extends through said insertion face and said trailing face, wherein said substantially flat portions of saidfirst side and said second side are symmetrical about the first plane, said implant being adapted to be inserted between the first vertebra and the second vertebra with said first side and said second side of said implant being oriented toward the firstendplate and the second endplate, respectively, and then rotated ninety degrees into an upright position, said trailing face having a recessed portion intersecting each of said first and second sides and being configured to receive an insertioninstrument for inserting said implant between the first vertebra and the second vertebra; an opening between said trailing face and said insertion face and between said first and second sides to permit for the growth of bone through said implant fromthe first vertebra to the second vertebra; upper and lower bearing surfaces each having a length measured parallel to the longitudinal axis of said implant, said upper bearing surface being adapted to bear against a portion of the first endplate, saidlower bearing surface being adapted to bear against a portion of the second endplate, said upper and lower bearing surfaces having portions proximate each of said first and second sides and being convex along the entire length of said upper and lowerbearing surfaces relative to the second plane and in a direction parallel to the longitudinal axis, said convex portions of said upper and lower bearing surfaces having a convex curvature generally conforming to the first and second endplates,respectively, said trailing face having a height less than and measured parallel to a maximum height measured between said upper and lower bearing surfaces proximate one of said first and second sides, said upper and lower bearing surfaces being disposedin a converging angular relationship toward each other such that said implant appears wedge-shaped from a side view, the converging angular relationship of said upper and lower bearing surfaces maintaining the first vertebra and the second vertebraadjacent to said upper and lower bearing surfaces in an angular relationship to maintain the desired lordosis between the first vertebra and the second vertebra; a top including said first bearing surface, said third bearing surface, and said upperbearing surface, a bottom including said second bearing surface, said fourth bearing surface, and said lower bearing surface, said top and said bottom each having portions proximate each of said first and second sides and being convex relative to thesecond plane and in the direction parallel to the longitudinal axis, said convex portions of said top and said bottom having a convex curvature generally conforming to the first and second endplates, respectively, along a majority of the length of saidimplant, said convex portions of said top and said bottom including said convex portions of said upper and lower bearing surfaces, said opening extending through said implant from said top to said bottom; ratchetings on each of said upper and lowerbearing surfaces adapted to engage the first vertebra and the second vertebra, respectively, each of said ratchetings having a ridge oriented in a direction generally parallel to the width of said implant, said ratchetings on each of said upper and lowerbearing surfaces having a forward facing facet facing an insertion direction and angled to afford forward movement of said implant and a rearward facing facet angled to prevent said implant from backing out in a direction opposite to the insertiondirection; and said opening of said implant being adapted to hold bone fusion promoting materials.

8. The implant of claim 7, wherein said implant has a plurality of openings between said trailing face and said insertion face and between said first and second sides to permit for the growth of bone through said implant from the first vertebrato the second vertebra.

9. The implant of claim 7, wherein said convex portions of said upper and lower bearing surfaces are convex along a continuous uninterrupted majority of the lengths of said upper and lower bearing surfaces, said convex portions of said upperand lower bearing surfaces being immediately adjacent said first and second sides.

10. A spinal fusion implant for insertion between a first vertebra and a second vertebra adjacent the first vertebra, the first vertebra having a generally vertically extending first peripheral wall and a first endplate and the second vertebrahaving a generally vertically extending second peripheral wall and a second endplate, wherein the implant comprises: a first terminal part defining a trailing face, a first bearing surface adapted to bear against a portion of the first endplate, and anopposite second bearing surface adapted to bear against a portion of the second endplate, said trailing face extending between said first bearing surface and said second bearing surface; a second terminal part opposite said first terminal part, saidsecond terminal part having an insertion face extending between a third bearing surface adapted to bear against a portion of the first endplate and a fourth bearing surface adapted to bear against a portion of the second endplate, said implant having alongitudinal axis extending through said trailing face of said first terminal part and said insertion face of said second terminal part, and having a cross section in a first plane extending through said first bearing surface and said second bearingsurface, and along the longitudinal axis, said implant having a length between said trailing face of said first terminal part and said insertion face of said second terminal part and parallel to the longitudinal axis, said implant having a width and aheight each perpendicular to the length of said implant; a first side and an opposite second side, said first side and said second side extending from said first terminal part to said second terminal part, portions of said first side and said secondside being substantially flat, said substantially flat portions intersecting a second plane that is perpendicular to the first plane and extends through said insertion face and said trailing face, wherein said substantially flat portions of said firstside and said second side are symmetrical about the first plane, said implant being adapted to be inserted between the first vertebra and the second vertebra with said first side and said second side of said implant being oriented toward the firstendplate and the second endplate, respectively, and then rotated ninety degrees into an upright position, said trailing face having a recessed portion intersecting each of said first and second sides and being configured to receive an insertioninstrument for inserting said implant between the first vertebra and the second vertebra; an opening between said trailing face and said insertion face and between said first and second sides to permit for the growth of bone through said implant fromthe first vertebra to the second vertebra; upper and lower bearing surfaces each having a length measured parallel to the longitudinal axis of said implant, said upper bearing surface being adapted to bear against a portion of the first endplate, saidlower bearing surface being adapted to bear against a portion of the second endplate, said upper and lower bearing surfaces having portions proximate each of said first and second sides and being convex along the entire length of said upper and lowerbearing surfaces relative to the second plane and in a direction parallel to the longitudinal axis, said convex portions of said upper and lower bearing surfaces having a convex curvature generally conforming to the first and second endplates,respectively, said trailing face having a height less than and measured parallel to a maximum height measured between said upper and lower bearing surfaces proximate one of said first and second sides; a top including said first bearing surface, saidthird bearing surface, and said upper bearing surface, a bottom including said second bearing surface, said fourth bearing surface, and said lower bearing surface, said top and said bottom each having portions proximate each of said first and secondsides and being convex relative to the second plane and in the direction parallel to the longitudinal axis, said convex portions of said top and said bottom having a convex curvature generally conforming to the first and second endplates, respectively,along a majority of the length of said implant, said convex portions of said top and said bottom including said convex portions of said upper and lower bearing surfaces, said opening extending through said implant from said top to said bottom; ratchetings on each of said upper and lower bearing surfaces adapted to engage the first vertebra and the second vertebra, respectively, each of said ratchetings having a ridge oriented in a direction generally parallel to the width of said implant, saidratchetings on each of said upper and lower bearing surfaces having a forward facing facet facing an insertion direction and angled to afford forward movement of said implant and a rearward facing facet angled to prevent said implant from backing out ina direction opposite to the insertion direction; and said opening of said implant being adapted to hold bone fusion promoting materials.

11. The implant of claim 10, wherein said implant has a plurality of openings between said trailing face and said insertion face and between said first and second sides to permit for the growth of bone through said implant from the firstvertebra to the second vertebra.

12. The implant of claim 10, wherein said convex portions of said upper and lower bearing surfaces are convex along a continuous uninterrupted majority of the lengths of said upper and lower bearing surfaces, said convex portions of said upperand lower bearing surfaces being immediately adjacent said first and second sides.


Description BACKGROUND OF THE INVENTION

1. Field of the Invention

The present invention relates generally to interbody spinal fusion implants, and in particular to spinal fusion implants configured to restore and maintain two adjacent vertebrae of the spine in correct anatomical angular relationship.

2. Description of the Prior Art

Both the cervical and lunbar areas of the human spine are, in a healthy state, lordotic such that they are curved convex forward. It is not uncommon that in degenerative conditions of the spine that lordosis is lost. This effectively shortensthe spinal canal which decreases its capacity. Further, the absence of lordosis moves the spinal cord anteriorly where it may be compressed against the posterior portions of the vertebral bodies and discs. Finally, such a loss of lordosis disturbs theoverall mechanics of the spine which may cause cascading degenerative changes throughout the adjacent spinal segments.

The surgical treatment of those degenerative conditions of the spine in which the spinal discs are in various states of collapse, and out of lordosis, commonly involves spinal fusion. That is the joining together of adjacent vertebrae throughan area of shared bone. When the shared bone is in the area previously occupied by the intervertebral disc that is referred to as an interbody fusion. Further history in this regard is provided in application Ser. No. 08/263,952 entitled ArtificialSpinal Fusion Implants (“Parent Application”) incorporated herein by reference.

The Parent Application taught the use of artificial spinal fusion implants that were capable of being placed between adjacent vertebrae, and which implants were capable of containing and providing fusion promoting substances including bone atthe fusion site. These devices were further capable of restoring the height of the disc space and of supporting the spine, and were self-stabilizing as well as being stabilizing to the spinal area where implanted.

SUMMARY OF THE INVENTION

The present invention is directed to interbody spinal fusion implants having a structural configuration that provides for the maintaining and creating of the normal anatomic angular relationship of two adjacent vertebrae of the spine to maintainand create spinal lordosis. The spinal fusion implants of the present invention are sized to fit within the disc space created by the removal of disc material between two adjacent vertebrae and conform wholly or in part to the disc space created. Thespinal fusion implants of the present invention have upper and lower surfaces that form a support structure for bearing against the end plates of the adjacent vertebrae. In the preferred embodiments, the upper and lower surfaces are disposed in aconverging angular relationship to each other such that the implants of the present invention have an overall “wedged-shape” in an elevational side view. The angular relationship of the upper and lower surfaces places and maintains the vertebraeadjacent to those surfaces in an angular relationship to each other, creating and maintaining the desired lordosis.

The implants of the present invention may have surface irregularities to increase their surface area, and/or to further engage the adjacent vertebrae and to enhance stability. The lordotic implants of the present invention may have surfaceirregularities that are uniform in height along the longitudinal axis of the upper and lower vertebrae engaging surfaces, or may increase in height from one end of the implant to the other. That is, the implant body and the surface formed and theprojections may be similarly wedged. The outer contour of the surface projections may be more or less rectangular while the underlying implant may be wedge-shaped; or the reverse wherein the underlying implant body is more or less rectangular while thecontour of the surface projections are wedge-shaped from one end of the implant to the other.

The implants of the present invention have various faces which may be curved so as to conform to the shape of the vertebral surfaces adjacent to the area of the disc removal. Specifically the upper and/or lower surfaces may be convex, and/orthe front and/or rear surfaces may be convex. The surfaces of the implants of the present invention may have openings which may or may not pass all the way through them, and a central chamber in communication to the surface through holes. The openingsmay be of random sizes, and/or shapes, and/or distributions. The implants themselves may be composed of materials, and/or have surface treatments, to encourage microscopic bone ingrowth into the implants.

In the performing of a posterior lumbar interbody fusion, it is not possible to replace the removed portions of the disc, if a total nuclear discectomy has been performed, with a single large implant as the delicate dural sac containing thespinal cord, and the nerve roots cover at all times at least some portion of the posterior disc space. As set forth in the Parent Application, the use of “modular implants” is appropriate in such cases. The modular implants being approximately as longas the depth of the disc material removed, but being considerably narrower, such that they can be introduced into the disc space from the posterior aspect to either side of the dural sac, and then aligned side to side within the disc space so that anumber of them each having a length consistent with the depth of the disc removed in that area would in combination have a width equal to the width of the disc material removed.

The modular implants of the present invention may be generally wedge-shaped and may have upper and lower surfaces conforming to the contours of the vertebral endplates, which contours include but are not limited to being relatively flat orconvex. As the disc spaces in the lumbar spine are generally lordotic, said implants in the preferred embodiment would be taller anteriorly, that is at the implant’s insertion end, and less tall posteriorly, that is at the implant’s trailing end. Tointroduce an implant that is taller at its insertion end than the space available at the posterior aspect of the disc space, even when that disc space is optimally distracted, is problematic.

The modular implants of the present invention provide two solutions to the problem. In the first embodiment, the modular implants may have a reduced size at their insertion end, including but not limited to a bullet nose, a convexity, and achamfer to a smaller front surface. This then provides that the implant has an area small enough to be introduced into the posterior aspect of the disc space when the disc space is adequately distracted and the contour of that specialized leadingportion of the implant is such that it then allows for a ramping up of the adjacent vertebrae relative to the implant as the implant is advanced forward into the disc space.

The implants of the present invention provide a second solution to this same problem. In the preferred embodiment of the modular implant, the implant is again wedge-shaped in the side elevational view and is taller at its insertion end than atits trailing end. However, the implant incorporates at its trailing end a means for engaging insertion instrumentation such as the box and threaded opening configuration disclosed in the Parent Application. Since in the preferred embodiment theseimplants are wedge-shaped in the side elevational view when upright but are generally rectangular when viewed from the top plan view, these implants are therefore designed to be introduced into the disc space on their side such that the side walls of theimplants are adjacent to the end plates of the adjacent vertebrae. The implants have a side-to-side dimension that is less than the dimension through the insertion end of the implant when upright. It is possible to easily insert these implants withthem on their side and then to use the insertion instrument engaged to the implant to rotate the implants ninety degrees into the fully upright position, once they have been fully inserted. Once inserted, the upper and lower surfaces are adjacent to theendplates of the adjacent vertebrae and create and maintain the desired angular relationship of the adjacent vertebrae as the upper and lower walls are angled with respect to each other.

In an alternative embodiment of the present invention, a mechanical implant which may be inserted in a collapsed position and which may then be adjusted to increase in height so as to provide for the optimal restoration of the height of thespace between the adjacent vertebrae is disclosed. The mechanical implant may be wedge-shaped, and have upper and lower surfaces, the contours of which generally conform to the contacted areas of the adjacent vertebral endplates and which contours mayinclude but are not limited to being relatively flat, or convex. Further, the mechanical implant may be wedge-shaped or generally rectangular, but capable of increasing in both height and the extent of wedging when adjusted. This may easily be achievedby having one of the two wedge mechanisms employed in the example given being larger, or steeper than the other. Alternatively, a single wedge may be utilized, and if it is desired to achieved increased height at one end of the implant while restrictingthe height at the other, then the end of the implant may incorporate a hinge means and the height expansion at the other end achieved by drawing a wedge member, bar, ball, or other means from the far end toward the hinged end so as to drive said upperand lower surfaces apart in a wedged fashion.

In an alternative embodiment of the present invention, an implant having a mechanically deployable bone engaging means is taught. Such an implant is generally wedge-shaped in the side elevational view and has upper and lower surfaces generallyconforming to the contour of the vertebral endplates where contacted by the implant, and which upper and lower surfaces may be but are not limited to being either flat or convex. The use of such deployable bone engaging means are particularly of valuein that the largest possible implant may be inserted into a disc space and the vertebral engaging means, which if fixed to the surface would have blocked the insertion of the implant, may then be deployed after the insertion such that the distance fromthe tip of the upper and lower boite engagement means exceeds the height of the space available for insertion. Such a feature is of particular value when the implant itself is wedge-shaped as the considerable compressive loads across the lumbar spinewould tend to drive a wedge-shaped implants out of the disc space.

OBJECTS OF THE PRESENT INVENTION

It is an object of the present invention to provide a spinal fusion implant that is easily inserted into the spine, having a tapered leading end;

It is another object of the present invention to provide a spinal fusion implant that tapers in height from one end to the other consistent with the taper of a normal spinal disc;

It is yet another object of the present invention to provide a spinal fusion implant that is capable of maintaining anatomic alignment and lordosis of two adjacent vertebrae during the spinal fusion process;

It is still another object of the present invention to provide a spinal fusion implant that is self stabilizing within the spine;

It is yet another object of the present invention to provide a spinal fusion implant that is capable of providing stability between adjacent vertebrae when inserted;

It is further another object of the present invention to provide a spinal fusion implant that is capable of spacing apart and supporting adjacent vertebrae in an angular relationship during the spinal fusion process;

It is still further another object of the present invention to provide a spinal fusion implant that fits between to adjacent vertebrae and preserves the end plants of those vertebrae; and

It is another object of the present invention to provide a spinal fusion implant having a shape which conforms to the endplates of the adjacent vertebrae; and

These and other objects of the present invention will become apparent from a review of the accompanying drawings and the detailed description of the drawings.

BRIEF DESCRIPTION OF THE DRAWINGS

FIG. 1 is a perspective view of the lordotic interbody spinal fusion implant of the present invention with a slidable door shown in a partially open position providing access to the internal chamber of the implant.

FIG. 2 is a top plan view of the lordotic interbody spinal fusion implant of the present invention.

FIG. 3 is a left side elevational view of the lordotic interbody spinal fusion implant of the present invention.

FIG. 4 is a right side elevational view of the lordotic interbody spinal fusion implant of the present invention.

FIG. 5 is a front end view of the lordotic interbody spinal fusion implant of the present invention showing the slidable door in a partially open position.

FIG. 6 is a rear end view of the lordotic interbody spinal fusion implant of the present invention showing the means for engaging insertion instrumentation.

FIG. 7 is an enlarged fragmentary view along line 7 of FIG. 2 illustrating the bone engaging surface configuration of the lordotic interbody spinal fusion implant of the present invention.

FIG. 7A is an elevational side view of a segment of the spinal column having the lordotic implant of the present invention inserted in the disc space at different disc levels between adjacent vertebrae to restore and maintain the correctanatomical alignment of the adjacent vertebrae.

FIG. 8 is a top plan view of an alternative embodiment of the lordotic interbody spinal fusion implant of the present invention.

FIG. 9 is a left side elevational view of the lordotic interbody spinal fusion implant of FIG. 8.

FIG. 10 is a front end view of the lordotic interbody spinal fusion implant of FIG. 8.

FIG. 11 is a rear end view of the lordotic interbody spinal fusion implant of FIG. 8 showing the means for engaging insertion instrumentation.

FIG. 12 is an enlarged fragmentary view along line 12 of FIG. 8 illustrating the surface configuration the lordotic interbody spinal fusion implant of the present invention.

FIG. 13 is a top plan view of an alternative embodiment of the lordotic interbody spinal fusion implant of the present invention made of a mesh-like material.

FIG. 14 is a left side elevational view of the lordotic interbody spinal fusion implant of FIG. 13.

FIG. 15 is a front end view of the lordotic interbody spinal fusion implant of FIG. 13.

FIG. 16 is a rear end view of the lordotic interbody spinal fusion implant of FIG. 13 showing the means for engaging insertion instrumentation.

FIG. 17 is an enlarged fragmentary view along line 17 of FIG. 13 illustrating the surface configuration of the lordotic interbody spinal fusion implant of the present invention.

FIG. 18 is a perspective view of an alternative embodiment of the lordotic interbody spinal fusion implant of the present invention.

FIG. 19 is a top plan view of the lordotic interbody spinal fusion implant of FIG. 18.

FIG. 20 is a left side elevational view of the lordotic interbody spinal fusion implant of FIG. 18.

FIG. 21 is a rear end view of the lordotic interbody spinal fusion implant of FIG. 18.

FIG. 22 is a front end view of the lordotic interbody spinal fusion implant of FIG. 18.

FIG. 23 is an enlarged fragmentary view along line 23 of FIG. 22 illustrating the surface configuration the lordotic interbody spinal fusion implant of the present invention.

FIG. 24 is a top plan view of an alternative embodiment of the lordotic interbody spinal fusion implant of the present invention.

FIG. 25 is a left side elevational view of the lordotic interbody spinal fusion implant of FIG. 24.

FIG. 26 is a rear end view of the lordotic interbody spinal fusion implant of FIG. 24.

FIG. 27 is a front end view of the lordotic interbody spinal fusion implant of FIG. 24.

FIG. 28 is an enlarged fragmentary view along line 28 of the lordotic interbody spinal fusion implant of FIG. 24 illustrating the surface configuration of the lordotic interbody spinal fusion implant of the present invention.

FIG. 29 is a sectional view along lines 29-29 of FIG. 28 the lordotic interbody spinal fusion implant of the present invention.

FIG. 30 is a side elevational view of a segment of the human spinal column shown with an alternative embodiment of the lordotic spinal fusion implant of the present invention that is adjustable and expandable shown in sectional view inserted inthe disc space levels to restore and maintain the correct anatomical alignment of the adjacent vertebrae.

FIG. 31 is a side cross sectional view of, an alternative embodiment of the lordotic implant of the present invention having movable projections, in the form of spikes 708, which are movable from a first position within the implant 700 to asecond position extending to the exterior of the implant.

FIG. 32 is a perspective view of the embodiment of FIG. 31.

DETAILED DESCRIPTION OF THE PREFERRED EMBODIMENT

Referring to FIGS. 1 through 7 the lordotic interbody spinal fusion implant of the present invention for use in the disc space between two adjacent vertebrae, generally referred to by the numeral 100, is shown. The implant 100 has a generallyrectangular configuration, having an upper surface 112 and a lower surface 114. In the preferred embodiment, the upper and lower surfaces 112 and 114 of implant 100 are disposed in a converging angular relationship toward each other such that theimplant 100 appears “wedge-shaped” from a side elevational view as shown in FIGS. 3 and 4. The upper and lower surfaces 112 and 114 have an interior surface which form a support structure for bearing against the endplates of the adjacent vertebraebetween which the implant 100 is inserted. The angular relationship of the upper and lower surfaces 112 and 114 places and maintains the vertebrae adjacent to those surfaces in an angular relationship, creating and maintaining the desired lordosis ofthe spine.

The upper and lower surfaces 112 and 114 of the implant 100 may be flat or curved to conform to the shape of the end plates of the adjacent vertebrae between which the implant 100 is inserted. The implant 100 conforms to the shape of thenucleus pulposus and a portion of the annulus fibrosus removed from the vertebrae. The upper and lower surfaces 112 and 114 comprise surface roughenings that provide a surface suitable for engaging the adjacent vertebrae to stabilize the implant 100within the disc space once surgically implanted. The surface roughenings of the upper and lower surfaces 112 and 114 comprise a surface knurling 121 and/or grooves.

Referring to FIG. 7, an enlarged fragmentary view of the surface knurling 121 of the implant 100 is shown as a diamond-shaped bone engaging pattern. The implant 100 may have surface knurling 121 throughout the entire upper and lower surfaces112 and 114, throughout only a portion of the upper and lower surfaces 112 and 114, or any combination thereof, without departing from the scope of the present invention. It is also appreciated that the surface knurling 121 may have variousconfiguration other than the configuration shown.

In this embodiment, the implant 100 is hollow and comprises a plurality of openings 115 of passing through the upper and lower surfaces 112 and 114 and into a central hollow chamber 116. The openings 115 provide for bone growth to occur fromthe vertebrae through the openings 115 to the internal chamber 116. While the openings 115 have been shown in the drawings as being circular, it is appreciated that the openings 115 may have any shape, size, configuration or distribution suitable foruse in a spinal implant without departing from the scope of the present invention. For example, the openings may have a tear-drop configuration as shown in opening 115a in FIGS. 1 and 2. The upper and lower surfaces 112 and 114 of the implant 100 aresupported and spaced apart by a side wall 118, which may also comprise a plurality of openings 122.

The implant 100 has an insertion end 120 and a trailing end 130 both of which may be curved or flat. The trailing end 130 of the implant may be convex to conform to the curvature of the vertebrae and has a means for engaging an implantinsertion instrument comprising a depressed portion 124 with a central threaded opening 126 for receiving the engaging end of a driving instrument. The insertion end 120 of the implant 100 comprises an access opening 132 and a slidable door 134 whichcloses the opening 132. The slidable door 134 covers the opening 132 into the chamber 116 and permits the insertion of autogenous bone material into the chamber 116.

In use, the slidable door 134 is placed in the open position for loading material into the chamber 116. The slideable door 134 has a depression 136 for facilitating the opening and closing of the door 134. The internal chamber 116 can befilled and hold any natural or artificial osteoconductive, osteoinductive, osteogenic, or other fusion enhancing material. Some examples of such materials are bone harvested from the patient, or bone growth inducing material such as, but not limited to,hydroxyapatite, hydroxyapatite tricalcium phosphate; or bone morphogenic protein. The implant 100 itself is made of material appropriate for human implantation such as titanium and/or may be made of, and/or filled and/or coated with a bone ingrowthinducing material such as, but not limited to, hydroxyapatite or hydroxyapatite tricalcium phosphate or any other osteoconductive, osteoinductive, osteogenic, or other fusion enhancing material.

The fusion enhancing material that is packed within the chamber 116 of the implant 100 serves to promote bone ingrowth between the implant 100 and the adjacent vertebrae. Once the bone ingrowth occurs, the implant 100 will be a permanentfixture preventing dislodgement of the implant as well as preventing any movement between the adjacent vertebrae.

The slidable door 134 is then closed prior to implantation. In the closed position, the slideable door conforms to the curvature of the insertion end 120 of the implant 100. Various methods of packing the implant 100 with the autogenous bonematerial may be used to obtain a completely packed implant 100.

The method of inserting the implant 100 is set forth in detail in application Ser. No. 08/263,952, incorporated herein by reference. The threaded end of a driving instrument is attached to the threaded opening 126 in the trailing end 130 ofthe implant 100 and the fitting of the driving instrument into the depressed portion 124 prevents movement of the implant 100 in relationship to the driving instrument. The implant 100 is then placed at the entrance to the disc space between the twoadjacent vertebrae V. The driver instrument is then tapped with a hammer sufficiently hard enough to drive the implant 100 into the disc space.

The size of the implant 100 is substantially the same size as the disc material that it is replacing and thus will be larger or smaller depending on the amount of disc material removed to create the disc space in which it is to be used. In thepreferred embodiment in regard to the lumbar spine the implant 100 has a width W approximately 28-48 mm wide, approximately 36 mm being preferred. The implant 100 has a height H conforming to the restoration of the anatomic height of the disc space theaverage height would range from 8-16 mm, with 10-12 of which being the preferred average height. The depth D along mid-longitudinal axis MLA would at its maximum range from 20 to 34 mm with 26 to 32 being the preferred maximum depth. In the cervicalspine the width of the implant is in the range of approximately 14-28 mm, with the preferred width being 18-22 mm. The implant has a height in the range of approximately 5-10 mm with the preferred height being 6-8 mm. The implant has a depth in therange of approximately 11-21 mm with the preferred depth being 11-13 mm.

Referring to FIG. 7A, a side elevational view of the lateral aspect of a segment of the spinal column S is shown with the implant 100 inserted in the disc space D.sub.2 between two adjacent vertebrae V.sub.2 and V.sub.3. The implant 100 isinserted in the direction of arrow A into the disc space D.sub.2 and maintains the two vertebrae V.sub.2 and V.sub.3 in angular relationship to each other such that the natural lordosis of that segment of the spinal column S is restored. The forwardadvancement of the implant 100 is blocked by the natural bone processes B in the endplates of the vertebrae V.sub.2 and V.sub.3. Backing out of the implant 100 is prevented by the bone engaging surface knurling 121 of the upper and lower surfaces 112and 114.

Referring to FIGS. 8-12, an alternative embodiment of the lordotic interbody spinal fusion implant of the present invention, generally referred to by the numeral 200, is shown. The implant 200 has a similar overall configuration as the implant100 described above. In the preferred embodiment, the implant 200 is solid and comprises a plurality of channels 215 passing from the upper surface 212 to the lower surface 214 through the implant 200. The channels 215 provide for bone ingrowth andfacilitate the incorporation of the implant 200 into the spinal fusion mass. The channels may also be loaded with fusion promoting materials such as those described above, prior to implantation. It is appreciated that the channels 215 need not pass allthe way through the implant 200, but can have a configuration similar to wells, which may hold fusion promoting materials and permit bone ingrowth into the upper and lower surfaces 212 and 214 of the implant 200.

In addition to the channels 215, the implant 200 may have small openings 222 on the side wall 218 which may or may not pass through the entire implant 200. The same openings 222 may be in communication with the channels 215 such that boneingrowth may occur from the openings 222 to the channels 215 to lock the implant 200 into the fusion mass. If the openings 222 do not pass through the entire implant 200, they may function as small wells for holding fusion promoting materials ordescribed above.

In the preferred embodiment of implant 200, the channels 215 have a diameter in the range of 0.1 mm to 6 mm, with 2-3 mm being the preferred diameter. The openings 222 have a diameter in the range of 0.1 mm to 6 mm, with 1-3 mm being thepreferred diameter range. It is appreciated that although the channels 215 and openings 222 are shown having a generally rounded configuration, it is within the scope of the present invention that the channels 215 and openings 222 may have any size,shape, configuration, and distribution suitable for the intended purpose.

The implant 200, has a plurality of ratchetings 250 on the upper and lower surface 212 and 214 for engaging the bone of the adjacent vertebrae. The ratchetings 250 comprise a bone engaging edge 252 and angled segment 254.

Referring specifically to FIG. 9, the implant 200 has a wedge-shaped elevational side view in which the trailing end 230 is taller than the insertion end 220. The plurality of ratchetings 250 are oriented in the direction of the insertion end220 to provide for a one-way insertion of the implant 200 as the bone engaging edge 252, or ridge, engages the vertebrae and prevents the implant from backing out once implanted. Alternatively, the trailing end ratchetings could be of a lessor heightsuch that the overall shape of the ratchetings as a group is convex.

Referring to FIG. 11, the trailing end 230 of implant 200 has means for engaging insertion instrumentation comprising a thread opening 226 as described above for implant 100.

Referring to FIG. 12, an enlarged fragmentary view along line 12 of FIG. 8 illustrating the surface configuration the implant 200 is shown. The upper and lower surfaces 212 and 214 of implant 200, in addition to the ratcheting 250 comprise aporous texture 260 to present an irregular surface to the bone to promote bone ingrowth. The porous texture 260 is also able to hold fusion promoting materials and provides for an increased surface area to engage the bone in the fusion process and toprovide further stability. The porous texture 260 may also be present on the side walls 218. It is appreciated that the outer surface and/or the entire implant 200, may comprise any other porous material or roughened surface sufficient to hold fusionpromoting substances and/or allow for bone ingrowth and/or engage the bone during the fusion process. The implant 200 may be further coated with bioactive fusion promoting substances including, but not limited to, hydroxyapatite compounds, osteogenicproteins and bone morphogenic proteins or may be from bioabsorbable material.

Referring to FIGS. 13-17, an alternative embodiment of the lordotic interbody spinal fusion implant, generally referred to by the numeral 300, is shown. The implant 300 is made of a mesh-like material comprising strands, which may be made ofmetal, that are pressed together and molded. The upper and lower surfaces 312 and 314 may be convex and conform to the natural surface curvature of the end plates of the vertebrae. In addition, the entire implant 300 may be molded to a shape thatconforms to the shape of the disc space created by the removal of disc material from between two adjacent vertebrae. In this manner, the implant 300 has curved upper and lower surfaces 312 and 314, a curved side wall 318 and chamfered edges 319.

Referring to FIG. 7A, the implant 300 is shown inserted in the direction of arrow A into the disc space D.sub.1 between adjacent vertebrae V.sub.1 and V.sub.2. The implant 300 conforms to the endplates of the adjacent vertebrae V.sub.1 andV.sub.2 as the upper and lower surfaces 312 and 314 are convex, and the side walls 318 are curved to conform to the natural curvature of the vertebrae V.sub.1 and V.sub.2. In this manner, the implant 300 has the same dimensions as the disc materialremoved from between the two adjacent vertebrae V.sub.1 and V.sub.2.

The implant 300 may be made wholly or in part of a solid material and/or a porous material, and/or a mesh-like material. The implant 300 may have a surface comprising of a porous material, a mesh-like material, or have a surface that isroughened. It is appreciated that the implant 300 may be solid or may be partially hollow and include at least one internal chamber in communication with said upper and lower surfaces.

As shown in FIG. 17, the mesh-like material comprises strands that are formed and pressed together such that interstices 339, capable of retaining fusion promoting material and for allowing for bone ingrowth, are present between the strands inat least the outer surface of implant 300. Alternatively, it is appreciated that the implant 300 may be made of a cancellous material, similar in configuration to human cancellous bone, having interstices allowing for bone ingrowth. As the implant 300may be made entirely or in part of the cancellous material, the interstices may be present in the outer surface of the implant 300 and/or within the entire implant to promote bone ingrowth and hold bone fusion promoting materials.

Referring to FIGS. 18-23 an alternative embodiment of the implant of the present invention, generally referred to by the numeral 400, is disclosed. The implant 400 has a substantially rectangular shape having upper and lower surfaces 412 and414. The upper and lower surfaces 412 and 414 support the adjacent vertebrae and are disposed in a converging angular relationship to each other in the same manner described above.

The implant 400 has a width W that is substantially less than the width of the implants 100-300 such that a series of such implants 400 are used as the interbody spinal implant, each placed closely adjacent to one another to approximate the sizeof the removed disc. The size of the implant 400 is approximately 26 millimeters in length and is wide enough so that four of them will substantially fill the intervertebral space, depending on which vertebrae are fused.

In the performing of a posterior lumbar interbody fusion, it is not possible to replace the removed portions of the disc, if a total nuclear discectomy has been performed, with a single large implant as the, delicate dural sac containing thespinal cord and nerve roots covers at all times at least some portion of the posterior disc space. The use of modular implants 400 that are inserted separately into the disc space is appropriate in such case. The modular implants 400 beingapproximately as long as the depth of the disc material removed, but being considerably narrower, such that they could be introduced into the disc space from the posterior aspect to either side of the dural sac, and then realigned side to side with thedisc space so that a number of them each having a length consistent with the depth of the disc removed in that area would in combination have a width equal to the width of the disc material removed. As the disc spaces in the lumbar spine are generallylordotic, the insertion end 420 of the modular implants 400 would have to be taller and less tall posteriorly at the trailing end 430.

To introduce the modular implant 400 that is taller at its insertion end 420 than the space available at the posterior aspect of the disc space, even when that disc space is optimally distracted, is problematic. The modular implants 400 ofprovide two solutions to the problem. The modular implants 400 may have a reduced size at their insertion end 420, including but not limited to, a bullet nose, a convexity, and a chamfer to a smaller front surface. This then provides that the implant400 has an area small enough to be introduced into the posterior aspect of the disc space when the disc space is adequately distracted and the contour of that specialized insertion end of the implant 400 is such that it then allows for a ramping up ofthe adjacent vertebrae relative to the implant 400 as the implant is advanced forward into the disc space.

Alternatively, or in combination with the above, since in the preferred embodiment the implants 400 are wedge-shaped in the side elevational view when upright but are generally rectangular when viewed from the top plan view, these implants maybe introduced into the disc space on their side such that the side walls of the implants are adjacent to the end plates of the adjacent vertebrae. The implants 400 have a side-to-side dimension that is less than the dimension through the insertion endof the implant 400 when upright. It is possible to easily insert the implant 400 first on their side and then to use the insertion instrument engaged to the implant 400 to rotate the implant ninety degrees into the fully upright position, once it hasbeen fully inserted. Once inserted, the upper and lower surfaces 412 and 414 are adjacent to the endplates of the adjacent vertebrae and create and maintain the desired angular relationship of the adjacent vertebrae as the upper and lower surfaces 412and 414 of the implant 400 are angled with respect to each other.

The implant 400 has large openings 415 in the form of rectangular slots for holding fusion promoting materials to promote bone growth from the vertebrae through the upper and lower surfaces 412 and 414 and into the interior of the implant 400. As the implant 400 is modular and more than one is implanted at a time, the large openings 415 are also present in the side walls 418 of the implant 400 to provide for bone growth from one implant to another implant such that after successful fusion, themodular implants 400 are interconnected to form a single unit.

Referring to FIG. 21, the trailing end 430 of the implant 400 is shown having an insertion instrument engaging means comprising a rectangular slot 424 and threaded opening 426.

Referring to FIG. 23, an enlarged fragmentary view along line 23 of FIG. 22 illustrating the surface configuration the implant 400 is shown. The surface configuration of the implant 400 is the same as the porous texture 260 described above.

Referring to FIG. 24, an alternative embodiment of the lordotic interbody spinal fusion implant of the present invention, generally referred to by the numeral 500, is shown. The implant 500 is a modular implant and has a similar overallconfiguration as implant 400. The implant 500 instead of having slots 415 has an upper and lower surfaces 512 and 514 that are capable of receiving and holding bone, or other materials capable of participating in the fusion process and/or capable ofpromoting bone ingrowth. In the preferred embodiment, the upper and lower surfaces 512 and 514 comprise a plurality of posts 540 that are spaced apart to provide a plurality of interstices 542 which are partial wells with incomplete walls capable ofholding and retaining milled bone material or any artificial bone ingrowth promoting material. The implant 500 may be prepared for implantation by grouting or otherwise coating the surface 538 with the appropriate fusion promoting substances.

Referring to FIGS. 28 and 29, an enlarged view of the upper surface 512 of the implant 500 and a partial cross section thereof are shown. In the preferred embodiment, the posts 540 have a head portion 544 of a larger diameter than the remainderof the posts 540, and each of the interstices 542 is the reverse configuration of the posts 544, having a bottom 546 that is wider than the entrance 548 to the interstices 542. Such a configuration of the posts 540 and interstices 542 aids in theretention of bone material in the surface 538 of the implant 500 and further assists in the locking of the implant 500 into the bone fusion mass created from the bone ingrowth. As the bone ingrowth at the bottom 546 of the interstices 542 is wider thanthe entrance 548, the bone ingrowth cannot exit from the entrance 548 and is locked within the interstice 542. The surface 538 of the implant 500 provides for an improvement in the available amount of surface area which may be still further increased byrough finishing, flocking or otherwise producing a non smooth surface.

In the preferred embodiment, the posts 540 have a maximum diameter in the range of approximately 0.1-2 mm and a height of approximately 0.1-2 mm and are spaced apart a distance of 0.1-2 mm such that the interstices 542 have a width in the rangeof approximately 0.1 to 2 mm. The post sizes, shapes, and distributions may be varied within the same implant.

It is appreciated that the implant 500 shares the same structure and features of the implant 400 described above.

FIG. 30 is a side elevational view of a segment of the human spinal column S shown in lordosis with an alternative embodiment of the lordotic spinal fusion implant referred to by the numeral 600, that is adjustable and expandable shown insertedin a space to restore and maintain the correct anatomical alignment of the adjacent vertebrae. The implant 600 comprises a lower member 682 and an upper member 684 which when fitted together form an essentially rectangular implant. The upper member 684and the lower member 682 have hollow portions that face one another and receive tapered wedges 686 and 688 that fit within the hollow portion of the upper and lower members 682 and 684. The upper and lower members 682 and 684 each have a wedged interiorsurface 689a and 689b which are angled towards the interior of the implant 600. The wedges 682 and 684 are such that at their large end, they are higher than the combined hollow space between the upper and lower members 684 and 682, and shallower at theother end than the hollow space between the upper and lower members.

The wedges 686 and 688 have a central threaded opening 690 and 692 in alignment with each other for receiving threaded screw 694. As the screw 694 is threaded into the opening 690, the wedges 686 and 688 abut the interior sloped surfaces 689aand 689b of the upper and lower members 682 and 684. As the screw 694 is turned, the wedges 686 and 688 are drawn together, and the sloped portions of the wedges force the upper member 682 away from the lower member 684. As the interior sloped surfaces689a and 689b have a greater slope near the trailing end 630, than near the insertion end 620, the upper and lower members 682 and 684 are forced apart more at the insertion end 620 than at the trailing end 630. As a result, the upper and lower members682 and 684 are disposed at a converging angular relationship to each other and support the adjacent vertebrae V.sub.1 and V.sub.2 in the same angular relationship.

Referring to FIG. 31, an alternative embodiment of the implant of the present invention, generally referred to by the numeral 700, is shown. The implant 700 has movable projections, in the form of spikes 708, which are movable from a firstposition within the implant 700 to a second position extending outside of the implant. The implant 700 is of a generally rectangular configuration, having a top surface 702 and a bottom surface 704 of the implant with slots 706 for permitting pivotalmember 707 having spikes 708 at their ends to project through said slots 706. The spikes 708 are pinned at one end 710 within the implant 700.

The implant 700 has opposing wedge shaped members 712 and 714 having a central threaded opening 716 for receiving a threaded screw 718 having a head 720 and a slot 722. The wedges 712 and 714 are facing each other so that upon turning of thescrew 718, will the two wedges 712 and 714 are drawn together to cause the spikes 708 to pivot about their end 710 and project to the exterior of the implant 700 through the aligned slots 706. The implant 700 may comprise a series of holes 724 on itssurfaces for promoting bone ingrowth and fusion.

In use, after the removal of the disc material, the implant 700 with the spikes 708 in their withdrawn position, is inserted into the disc space. Then the screw 718 is turned until the spikes 708 are forced to enter the vertebrae and theimplant 700 is thus held firmly in place.

While the invention has been described with regards to the preferred embodiment and a number of alternative embodiments, it is recognized that other embodiments of the present invention may be devised which would not depart from the scope of thepresent invention.
