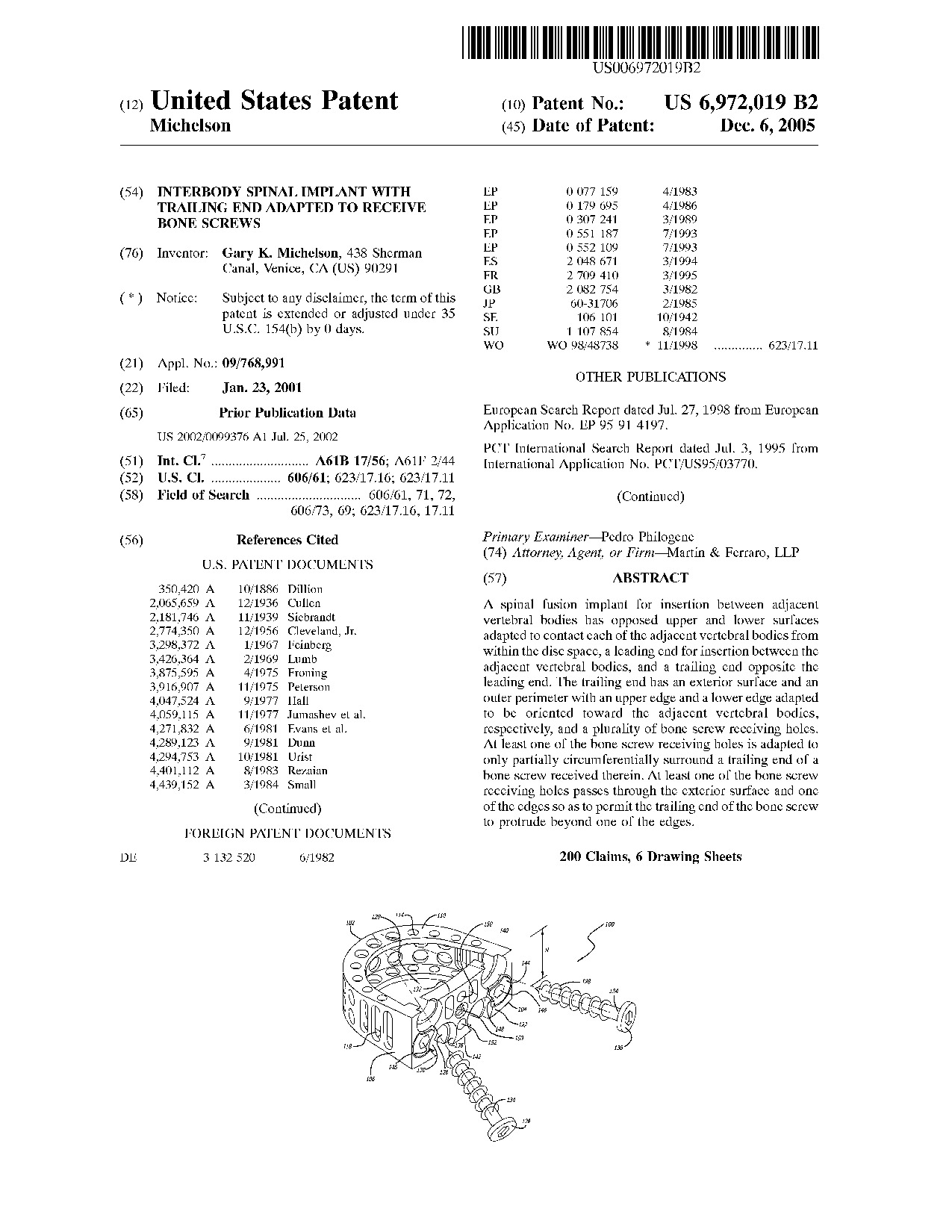

Abstract

A spinal fusion implant for insertion between adjacent vertebral bodies has opposed upper and lower surfaces adapted to contact each of the adjacent vertebral bodies from within the disc space, a leading end for insertion between the adjacent vertebral bodies, and a trailing end opposite the leading end. The trailing end has an exterior surface and an outer perimeter with an upper edge and a lower edge adapted to be oriented toward the adjacent vertebral bodies, respectively, and a plurality of bone screw receiving holes. At least one of the bone screw receiving holes is adapted to only partially circumferentially surround a trailing end of a bone screw received therein. At least one of the bone screw receiving holes passes through the exterior surface and one of the edges so as to permit the trailing end of the bone screw to protrude beyond one of the edges.

Inventors: Michelson; Gary K. (Venice, CA)
Family ID: 25084081
Appl. No.:
Filed: 2001-01-23
Current U.S. Class: 606/86A; 606/247; 623/17.11; 623/17.16
Current CPC Class: A61F 2/4611 (20130101); A61F 2/4455 (20130101); A61B 17/86 (20130101); A61F 2310/00796 (20130101); A61F 2002/2817 (20130101); A61F 2002/2835 (20130101); A61F 2002/30187 (20130101); A61F 2002/30677 (20130101); A61F 2002/30774 (20130101); A61F 2002/30779 (20130101); A61F 2002/30785 (20130101); A61F 2002/30787 (20130101); A61F 2002/30794 (20130101); A61F 2002/4475 (20130101); A61F 2002/4627 (20130101); A61F 2230/0034 (20130101); A61F 2310/00023 (20130101); A61F 2310/00293 (20130101)
Current International Class: A61B 017/56 (); A61F 002/44 ()
Field of Search: ;606/61,71,72,73,69 ;623/17.16,17.11

Claims

I claim:

1. A spinal implant for insertion at least in part across at least the height of a disc space between adjacent vertebral bodies of a human spine, said implant comprising: opposed upperand lower surfaces adapted to be placed toward and in contact with each of the adjacent vertebral bodies, respectively, from within the disc space; a leading end for insertion into the disc space and between the adjacent vertebral bodies; a trailingend opposite said leading end, said trailing end having an exterior surface and an outer perimeter with an upper edge and a lower edge adapted to be oriented toward the adjacent vertebral bodies, respectively, said trailing end having a maximum height asmeasured from said upper edge to said lower edge along the longitudinal axis of the human spine, said maximum height being adapted to fit within the disc space and between the vertebral bodies adjacent to the disc space; a bone screw having a leadingend for placement in the vertebral body and a trailing end opposite said leading end adapted to cooperatively engage said implant so as to prevent further advancement of said bone screw into the bone; and a plurality of bone screw receiving holes insaid trailing end, at least one of which is adapted to only partially circumferentially surround said a trailing end of said bone screw adapted to be received therein, at least one of said bone screw receiving holes passing through said exterior surfaceand one of said edges so as to permit said trailing end of said bone screw to protrude beyond said one of said edges of said implant and overlie at least in part one of the adjacent vertebral bodies when said bone screw is inserted into said at least onebone screw receiving hole.

2. The implant of claim 1, wherein said implant is a fusion implant.

3. The implant of claim 1, wherein a plane of said trailing end of said implant is curved.

4. The implant of claim 1, wherein said implant has a height equal to the distance between the adjacent vertebral bodies of a surgically corrected disc space.

5. The implant of claim 1, wherein said outer perimeter of said trailing end of said implant has at least one gap therein for permitting a portion of at least an outer diameter of said bone screw to protrude beyond said outer perimeter of saidtrailing end, said gap in said bone screw receiving hole dimensioned to be less than the outer diameter of said bone screw.

6. The implant of claim 1, wherein at least one of said bone screw receiving holes passing through said exterior surface and one of said edges is C-shaped in cross section.

7. The implant of claim 1, wherein at east one of said bone screw receiving holes passing through said exterior surface and one of said edges has a partial circumference intersecting with the outer perimeter of said trailing end of said implant.

8. The implant of claim 1, wherein said trailing end of said implant is relieved to allow for a head of said bone screw inserted into one of said bone screw receiving holes to be at least partially recessed.

9. The implant of claim 1, wherein at least two of said plurality of bone screw receiving holes are at different distances from the mid-longitudinal axis of said implant.

10. The implant of claim 1, wherein said trailing end of said implant is generally quadrilateral in shape.

11. The implant of claim 1, wherein at least one pair of said plurality of bone screw receiving holes are adapted to orient bone screws to be received therein at an angle to a horizontal mid-longitudinal plane of said implant passing throughsaid leading and trailing ends of said implant.

12. The implant of claim 11, wherein said plurality of bone screw receiving holes includes a pair of screw receiving holes along said upper edge and a pair of screw receiving holes along said lower edge, one of said pair of bone screw receivingholes being adapted to position bone screws in a convergent relationship to one another.

13. The implant of claim 12, wherein the other of said pair of bone screw receiving holes is adapted to position bone screws in a divergent relationship to one another.

14. The implant of claim 11, wherein said angle is greater than 15 degrees and less than 60 degrees.

15. The implant of claim 1, further comprising at least one lock for retaining said bone screw within said implant.

16. The implant of claim 15, further comprising at least a second bone screw, said at least one lock retaining said at least two bone screws to said implant.

17. The implant of claim 1, wherein said implant comprises one of bone and bone growth promoting material.

18. The implant of claim 17, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

19. The implant of claim 1, wherein said implant is treated with a bone growth promoting substance.

20. The implant of claim 1, wherein said implant comprises at least one of the following materials: metal, titanium, plastic, and ceramic.

21. The implant of claim 1, wherein said implant is formed of a porous material.

22. The implant of claim 1, wherein said implant has an interior surface and a hollow defined therein, said hollow being capable of containing bone growth promoting material.

23. The implant of claim 22, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

24. The implant of claim 1, in combination with a chemical substance to inhibit scar formation.

25. The implant of claim 1, further in combination with a fusion promoting substance.

26. The implant of claim 25, wherein said fusion promoting substance is bone morphogenetic protein.

27. The implant of claim 25, wherein said fusion promoting substance includes hydroxyapatite.

28. The implant of claim 25, wherein said fusion promoting substance is genes coding for the production of bone.

29. The implant of claim 25, wherein said fusion promoting substance is bone.

30. The implant of claim 1, wherein at least one of said bone screw receiving holes passes through said upper edge and at least one of said bone screw receiving holes passes through said lower edge of said trailing end.

31. The implant of claim 1, in combination with a bone removal device for forming an implantation space at least in part between the adjacent vertebral bodies for receiving at least a portion of said implant.

32. The implant of claim 31, wherein said bone removal device is a milling instrument.

33. The implant of claim 31, in combination with an implant driver configured to insert said implant at least in part into the implantation space formed by said bone removal device.

34. The implant of claim 1, in combination with an instrument for forming a bone screw receiving hole into one of the vertebral bodies.

35. The implant of claim 34, wherein said instrument is one of an awl, a spike, and a drill.

36. The implant of claim 34, in combination with a guide having an end configured to cooperatively engage said trailing end of said implant to guide said instrument through one of said bone screw receiving holes of said implant.

37. The implant of claim 1, in combination with a screw driver configured to install at least one bone screw into said bone screw receiving holes and into the bone of a vertebral body.

38. The implant of claim 1, wherein at least one of said bone screw receiving holes interrupts said upper edge of said perimeter of said trailing end of said implant and at least another one of said bone screw receiving holes interrupts saidlower edge of said perimeter of said trailing end of said implant.

39. The implant of claim 1, wherein each of said bone screw receiving holes is configured to position said bone screw therein at an angle to a vertical mid-longitudinal plane of said implant passing through said leading and trailing ends of saidimplant.

40. A spinal implant for insertion at least in part across at least the height of a disc space between adjacent vertebral bodies of a human spine, said implant comprising: opposed upper and lower surfaces adapted to be placed toward and incontact with one each of the adjacent vertebral bodies, respectively, from within the disc space; a leading end for insertion between the adjacent vertebral bodies; and a trailing end opposite said leading end, said trailing end having an upper edgeand a lower edge, said trailing end having a maximum height as measured from said upper edge to said lower edge along the longitudinal axis of the human spine, said maximum height being adapted to fit within the disc space and between the vertebralbodies adjacent to the disc space, said trailing end being adapted to only partially circumferentially surround the circumference of at least one bone screw adapted to be received therein, said trailing end of said implant being adapted to orient bonescrews to be received therein in a divergent relationship to one another and at an angle to a horizontal mid-longitudinal plane of said implant passing through said leading and trailing ends of said implant.

41. The implant of claim 40, wherein said implant is a fusion implant.

42. The implant of claim 40, wherein said trailing end is curved.

43. The implant of claim 40, wherein said implant has a height equal to the distance between the adjacent vertebral bodies of a surgically corrected disc space.

44. The implant of claim 40, wherein at least one of said upper and lower edges of said trailing end has at least one gap therein for permitting a portion of at least an outer diameter of a bone screw to protrude beyond said at least one of saidupper and lower edges of said trailing end and overlie at east in part one of the adjacent vertebral bodies, said gap being dimensioned to be less than the outer diameter of the bone screw.

45. The implant of claim 40, wherein said trailing end is relieved to allow for a head of a bone screw inserted into said trailing end to be at least partially recessed.

46. The implant of claim 40, wherein said trailing end has a pair of screw receiving holes along said upper edge and a pair of screw receiving holes along said lower edge, one of said pair of bone screw receiving holes being adapted to positionbone screws in a convergent relationship to one another.

47. The implant of claim 46, wherein the other of said pair of bone screw receiving holes is adapted to position bone screws in the divergent relationship to one another.

48. The implant of claim 40, further comprising at least one lock for retaining at least one of the bone screws within said implant.

49. The implant of claim 48, wherein said at least one lock retains at least two of the bone screws to said implant.

50. The implant of claim 40, further comprising at least one bone screw having a leading end for placement in the vertebral body and a trailing end opposite said leading end adapted to cooperatively engage said implant so as to prevent furtheradvancement of said at least one bone screw into the bone and to be retained within said trailing end of said implant.

51. The implant of claim 40, wherein said implant comprises one of bone and bone growth promoting material.

52. The implant of claim 51, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding the production of bone.

53. The implant of claim 40, wherein said implant comprises at least one of the following materials: metal, titanium, plastic, and ceramic.

54. The implant of claim 40, wherein said implant has an interior surface and a hollow defined therein, said hollow being capable of containing bone growth promoting material.

55. The implant of claim 54, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

56. The implant of claim 40, in combination with a chemical substance to inhibit scar formation.

57. The implant of claim 40, further in combination with a fusion promoting substance.

58. The implant of claim 57, wherein said fusion promoting substance is bone morphogenetic protein.

59. The implant of claim 57, wherein said fusion promoting substance includes hydroxyapatite.

60. The implant of claim 57, wherein said fusion promoting substance is genes coding for the production of bone.

61. The implant of claim 57, wherein said fusion promoting substance is bone.

62. The implant of claim 40, further comprising a plurality of bone screw receiving holes, at least one of said bone screw receiving holes passing through said upper edge and at least one of said bone screw receiving holes passing through saidlower edge of said trailing end.

63. The implant of claim 40, in combination with a bone removal device for forming an implantation space at least in part between the adjacent vertebral bodies for receiving at least a portion of said implant.

64. The implant of claim 63, wherein said bone removal device is a milling instrument.

65. The implant of claim 63, in combination with an implant driver configured to insert said implant at least in part into the implantation space formed by said bone removal device.

66. The implant of claim 40, in combination with an instrument for forming a bone screw receiving hole into one of the vertebral bodies.

67. The implant of claim 66, wherein said instrument is one of an awl, a spike, and a drill.

68. The implant of claim 66, in combination with a guide having an end configured to cooperatively engage said trailing end of said implant to guide said instrument through one of said bone screw receiving holes of said implant.

69. The implant of claim 40, in combination with a screw driver configured to install at least one bone screw into said bone screw receiving holes and into the bone of a vertebral body.

70. The implant of claim 40, further comprising a plurality of bone screw receiving holes in said trailing end, at least one of said bone screw receiving holes interrupts said upper edge of said perimeter of said trailing end of said implant andat least another one of said bone screw receiving holes interrupts said lower edge of said perimeter of said trailing end of said implant.

71. The implant of claim 40, wherein said trailing end is configured to position each of the bone screws received therein at an angle to a vertical mid-longitudinal plane of said implant passing through said leading and trailing ends of saidimplant.

72. A spinal implant for insertion at least in part across at least the height of a disc space between adjacent vertebral bodies of a human spine, said implant comprising: opposed upper and lower portions adapted to be placed toward and incontact with each one of the adjacent vertebral bodies, respectively, from within the disc space; a leading end for insertion into the disc space and between the adjacent vertebral bodies; a trailing end opposite said leading end, said trailing endhaving an upper edge, a lower edge, and a maximum height as measured from said upper edge to said lower edge along the longitudinal axis of the human spine, said maximum height being adapted to fit within the disc space and between the vertebral bodiesadjacent to the disc space, said trailing end being adapted to receive at least a portion of a bone screw passing therein that extends beyond said maximum height immediately adjacent thereto; and said bone screw having a leading end for placement in thevertebral body and a trailing end opposite said leading end adapted to cooperatively engage said implant so as to prevent further advancement of said bone screw into the bone, said trailing end of said bone screw extending beyond said maximum height ofsaid trailing end of said implant immediately adjacent thereto and overlying at least in part one of the adjacent vertebral bodies.

73. The implant of claim 72, wherein said implant is a fusion implant.

74. The implant of claim 72, wherein said trailing end of said implant is curved.

75. The implant of claim 72, wherein said implant has a height equal to the distance between the adjacent vertebral bodies of a surgically corrected disc space.

76. The implant of claim 72, wherein at least one of said upper and lower edges of said trailing end of said implant has at least one gap therein for permitting a portion of at least an outer diameter of said bone screw to protrude beyond saidat least one of said upper and lower edges of said trailing end of said implant, said gap being dimensioned to be less than the outer diameter of said bone screw.

77. The implant of claim 72, wherein said trailing end of said implant is relieved to allow for a head of said bone screw inserted into said trailing end of said implant to be at least partially recessed.

78. The implant of claim 72, wherein said trailing end of said implant is adapted to orient bone screws to be received therein at an angle to a horizontal mid-longitudinal plane of said implant passing through said leading and trailing ends ofsaid implant.

79. The implant of claim 78, wherein said trailing end has a pair of screw receiving holes along said upper edge and a pair of screw receiving holes along said lower edge, one of said pair of bone screw receiving holes being adapted to positionbone screws in a convergent relationship to one another.

80. The implant of claim 79, wherein the other of said pair of bone screw receiving holes is adapted to position bone screws in a divergent relationship to one another.

81. The implant of claim 72, further comprising at least one lock for retaining said bone screw within said implant.

82. The implant of claim 81, further comprising at least a second bone screw, said at least one lock retaining said at least two bone screws to said implant.

83. The implant of claim 72, wherein said implant comprises one of bone and bone growth promoting material.

84. The implant of claim 83, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

85. The implant of claim 72, wherein said implant comprises at least one of the following materials: metal, titanium, plastic, and ceramic.

86. The implant of claim 72, wherein said implant has an interior surface and a hollow defined therein, said hollow being capable of containing bone growth promoting material.

87. The implant of claim 86, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

88. The implant of claim 72, in combination with a chemical substance to inhibit scar formation.

89. The implant of claim 72, further in combination with a fusion promoting substance.

90. The implant of claim 89, wherein said fusion promoting substance is bone morphogenetic protein.

91. The implant of claim 89, wherein said fusion promoting substance includes hydroxyapatite.

92. The implant of claim 89, wherein said fusion promoting substance is genes coding for the production of bone.

93. The implant of claim 89, wherein said fusion promoting substance is bone.

94. The implant of claim 72, in combination with a bone removal device for forming an implantation space at least in part between the adjacent vertebral bodies for receiving at least a portion of said implant.

95. The implant of claim 94, wherein said bone removal device is a milling instrument.

96. The implant of claim 94, in combination with an implant driver configured to insert said implant at least in part into the implantation space formed by said bone removal device.

97. The implant of claim 72, in combination with an instrument for forming a bone screw receiving hole into one of the vertebral bodies.

98. The implant of claim 97, wherein said instrument is one of an awl, a spike, and a drill.

99. The implant of claim 97, in combination with a guide having an end configured to cooperatively engage said trailing end of said implant to guide said instrument through one of said bone screw receiving holes of said implant.

100. The implant of claim 72, in combination with a screw driver configured to install at least one bone screw into said bone screw receiving holes and into the bone of a vertebral body.

101. The implant of claim 72, further comprising a plurality of bone screw receiving holes in said trailing end, at least one of said bone screw receiving holes interrupts said upper edge of said perimeter of said trailing end of said implantand at least another one of said bone screw receiving holes interrupts said lower edge of said perimeter of said trailing end of said implant.

102. The implant of claim 72, wherein said trailing end of said implant is configured to position said bone screw received therein at an angle to a vertical mid-longitudinal plane of said implant passing through said leading and trailing ends ofsaid implant.

103. A spinal implant for insertion at least in part across at least the height of a disc space between adjacent vertebral bodies of a human spine, said implant comprising: opposed upper and lower surfaces adapted to be placed toward and incontact with each one of the adjacent vertebral bodies, respectively, from within the disc space; a leading end for insertion into the disc space and between the adjacent vertebral bodies; and a trailing end opposite said leading end, said trailing endhaving a plurality of bone screw receiving holes, an upper edge, a lower edge, and a maximum height as measured from said upper edge to said lower edge along the longitudinal axis of the human spine, said maximum height being adapted to fit into the discspace and between the vertebral bodies adjacent to the disc space, said maximum height of said trailing end being adapted to be less than the sum of the maximum diameter of two bone screws adapted to be inserted in said bone screw receiving holes, saidbone screw receiving holes being adapted to incompletely circumferentially receive at least one of the bone screws, at least one of said bone screw receiving holes interrupting only said upper edge of said trailing end, and another one of said bone screwreceiving holes interrupting only said lower edge of said trailing end.

104. The implant of claim 103, wherein said implant is a fusion implant.

105. The implant of claim 103, wherein said trailing end is curved.

106. The implant of claim 103, wherein said implant has a height equal to the distance between the adjacent vertebral bodies of a surgically corrected disc space.

107. The implant of claim 103, wherein at least one of said upper and lower edges of said trailing end has at least one gap therein for permitting a portion of at least an outer diameter of a bone screw to protrude beyond said at least one ofsaid upper and lower edges of said trailing end, said gap in said bone screw receiving hole dimensioned to be less than the outer diameter of the bone screw.

108. The implant of claim 103, wherein at least one of said bone screw receiving holes is C-shaped in cross section.

109. The implant of claim 103, wherein said trailing end is relieved to allow for a head of a bone screw inserted into one of said bone screw receiving holes to be at least partially recessed.

110. The implant of claim 103, wherein at least one pair of said plurality of bone screw receiving holes are adapted to orient bone screws to be received therein at an angle to a horizontal mid-longitudinal plane of said implant passing throughsaid leading and trailing ends.

111. The implant of claim 110, wherein said plurality of bone screw receiving holes includes a pair of screw receiving holes along said upper edge and a pair of screw receiving holes along said lower edge, one of said pair of bone screwreceiving holes being adapted to position bone screws in a convergent relationship to one another.

112. The implant of claim 111, wherein the other of said pair of bone screw receiving holes is adapted to position bone screws in a divergent relationship to one another.

113. The implant of claim 103, further comprising at least one lock for retaining a bone screw within said implant.

114. The implant of claim 113, wherein said at least one lock retains a plurality of bone screws to said implant.

115. The implant of claim 103, further comprising at least one bone screw having a leading end for placement in the vertebral body and a trailing end opposite said leading end adapted to cooperatively engage said implant so as to prevent furtheradvancement of said at least one bone screw into the bone and to be retained within one of said plurality of bone screw receiving holes of said implant.

116. The implant of claim 103, wherein said implant comprises one of bone and bone growth promoting material.

117. The implant of claim 116, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

118. The implant of claim 103, wherein said implant comprises at least one of the following materials: metal, titanium, plastic, and ceramic.

119. The implant of claim 103, wherein said implant has an interior surface and a hollow defined therein, said hollow being capable of containing bone growth promoting material.

120. The implant of claim 103, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

121. The implant of claim 103, in combination with a chemical substance to inhibit scar formation.

122. The implant of claim 103, further in combination with a fusion promoting substance.

123. The implant of claim 122, wherein said fusion promoting substance is bone morphogenetic protein.

124. The implant of claim 122, wherein said fusion promoting substance includes hydroxyapatite.

125. The implant of claim 122, wherein said fusion promoting substance is genes coding for the production of bone.

126. The implant of claim 122, wherein said fusion promoting substance is bone.

127. The implant of claim 103, in combination with a bone removal device for forming an implantation space at least in part between the adjacent vertebral bodies for receiving at least a portion of said implant.

128. The implant of claim 127, wherein said bone removal device is a milling instrument.

129. The implant of claim 127, in combination with an implant driver configured to insert said implant at least in part into the implantation space formed by said bone removal device.

130. The implant of claim 103, in combination with an instrument for forming a bone screw receiving hole into one of the vertebral bodies.

131. The implant of claim 130, wherein said instrument is one of an awl, a spike, and a drill.

132. The implant of claim 130, in combination with a guide having an end configured to cooperatively engage said trailing end of said implant to guide said instrument through one of said bone screw receiving holes of said implant.

133. The implant of claim 103, in combination with a screw driver configured to install at least one bone screw into said bone screw receiving holes and into the bone of a vertebral body.

134. The implant of claim 103, wherein each of said bone screw receiving holes is configured to position one of the bone screws therein at an angle to a vertical mid-longitudinal plane of said implant passing through said leading and trailingends of said implant.

135. A spinal fusion implant for insertion at least in part across at least the height of a disc space between adjacent vertebral bodies of a human spine, said implant comprising: opposed upper and lower surfaces adapted to be placed toward andin contact with each of the opposed adjacent vertebral bodies, respectively, from within the disc space; a leading end for insertion into the disc space and between the adjacent vertebral bodies; a trailing end opposite said leading end, said trailingend having an exterior surface and an outer perimeter with an upper edge and a lower edge adapted to be oriented toward the adjacent vertebral bodies, respectively, said trailing end having a maximum height as measured from said upper edge to said loweredge along the longitudinal axis of the human spine, said maximum height being adapted to fit within the disc space and between the vertebral bodies adjacent to the disc space; and a plurality of bone screw receiving holes in said trailing end, at leastone of which is adapted to only partially circumferentially surround the trailing end of a bone screw adapted to be received therein, at least one of said screw receiving holes passing through said exterior surface and one of said edges so as to permitthe bone screw to protrude over one of said edges within a plane of said trailing end; and at least one bone screw, said at least one bone screw having; a leading end for placement in the vertebral body; and a trailing end opposite said leading end,said trailing end of said bone screw adapted to cooperatively engage said implant so as to prevent further advancement of said at least one bone screw into the bone and to be retained within said implant, said trailing end of said at least one bone screwprotruding over one of said edges within a plane of said trailing end of said implant when inserted into said at least one of said bone screw receiving holes.

136. The implant of claim 135, wherein said implant is a fusion implant.

137. The implant of claim 135, wherein said plane of said trailing end of said implant is curved.

138. The implant of claim 135, wherein said implant has a height equal to the distance between the adjacent vertebral bodies of a surgically corrected disc space.

139. The implant of claim 135, wherein said outer perimeter of said trailing end of said implant has at least one gap therein for permitting a portion of at least an outer diameter of said at least one bone screw to protrude beyond the outerperimeter of said trailing end, said gap in said bone screw receiving hole dimensioned to be less than the outer diameter of said at least one bone screw.

140. The implant of claim 135, wherein at least one of said bone screw receiving holes passing through said exterior surface and one of said edges is C-shaped in cross section.

141. The implant of claim 135, wherein at least one of said bone screw receiving holes passing through said exterior surface and one of said edges has a partial circumference intersecting with the outer perimeter of said trailing end of saidimplant.

142. The implant of claim 135, wherein said trailing end of said implant is relieved to allow for a head of said at least one bone screw inserted into one of said bone screw receiving holes to be at least partially recessed.

143. The implant of claim 135, wherein at least one pair of said plurality of bone screw receiving holes are adapted to orient bone screws to be received therein at an angle to a horizontal mid-longitudinal plane of said implant passing throughsaid leading and trailing ends of said implant.

144. The implant of claim 143, wherein said plurality of bone screw receiving holes includes a pair of screw receiving holes along said upper edge and a pair of screw receiving holes along said lower edge, one of said pair of bone screwreceiving holes being adapted to position bone screws in a convergent relationship to one another.

145. The implant of claim 144, wherein the other of said pair of bone screw receiving holes is adapted to position bone screws in a divergent relationship to one another.

146. The implant of claim 135, further comprising at least one lock for retaining at least one of said at least one bone screw within said implant.

147. The implant of claim 146, further comprising at least a second bone screw, said at least one lock retaining said at least two bone screws to said implant.

148. The implant of claim 135, wherein said implant comprises one of bone and bone growth promoting material.

149. The implant of claim 148, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

150. The implant of claim 135, wherein said implant comprises at least one of the following materials: metal, titanium, plastic, and ceramic.

151. The implant of claim 135, wherein said implant has an interior surface and a hollow defined therein, said hollow being capable of containing bone growth promoting material.

152. The implant of claim 151, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

153. The implant of claim 135, in combination with a chemical substance to inhibit scar formation.

154. The implant of claim 135, further in combination with a fusion promoting substance.

155. The implant of claim 154, wherein said fusion promoting substance is bone morphogenetic protein.

156. The implant of claim 154, wherein said fusion promoting substance includes hydroxyapatite.

157. The implant of claim 154, wherein said fusion promoting substance is genes coding for the of bone.

158. The implant of claim 154, wherein said fusion promoting substance is bone.

159. The implant of claim 135, wherein at least one of said bone screw receiving holes passes through said upper edge and at least one of said bone screw receiving holes passes through said lower edge of said trailing end.

160. The implant of claim 135, in combination with a bone removal device for forming an implantation space at least in part between the adjacent vertebral bodies for receiving at least a portion of said implant.

161. The implant of claim 160, wherein said bone removal device is a milling instrument.

162. The implant of claim 160, in combination with an implant driver configured to insert said implant at least in part into the implantation space formed by said bone removal device.

163. The implant of claim 135, in combination with an instrument for forming a bone screw receiving hole into one of the vertebral bodies.

164. The implant of claim 163, wherein said instrument is one of an awl, a spike, and a drill.

165. The implant of claim 163, in combination with a guide having an end configured to cooperatively engage said trailing end of said implant to guide said instrument through one of said bone screw receiving holes of said implant.

166. The implant of claim 135, in combination with a screw driver configured to install at least one bone screw into said bone screw receiving holes and into the bone of a vertebral body.

167. The implant of claim 135, wherein at least one of said bone screw receiving holes interrupts said upper edge of said perimeter of said trailing end of said implant and at least another one of said bone screw receiving holes interrupts saidlower edge of said perimeter of said trailing end of said implant.

168. The implant of claim 135, wherein each of said bone screw receiving holes is configured to position one bone screw therein at an angle to a vertical mid-longitudinal plane of said implant passing through said leading and trailing ends ofsaid implant.

169. An interbody spinal implant for insertion at least in part across at least the height of a disc space between adjacent vertebral bodies of a human spine, said implant comprising: opposed upper and lower surfaces adapted to be placed towardand in contact with each of the adjacent vertebral bodies, respectively, from within the disc space; a leading end for insertion into the disc space between the adjacent vertebral bodies; a trailing end opposite said leading end, said trailing endhaving an exterior surface and an outer perimeter with an upper edge and a lower edge adapted to be oriented toward the adjacent vertebral bodies, respectively, said trailing end having a maximum height as measured from said upper edge to said lower edgealong the longitudinal axis of the human spine, said maximum height being adapted to fit within the disc space and between the vertebral bodies adjacent to the disc space; and at least two bone screw receiving holes, at least one of said bone screwreceiving holes proximate said upper edge of said outer perimeter having a single gap therein for permitting a portion of a bone screw to protrude over said upper edge of the outer perimeter of said trailing end within a plane of said trailing end, atleast a second one of said bone screw receiving holes proximate said lower edge of said outer perimeter having a single gap therein for permitting a portion of another bone screw to protrude over said lower edge of the outer perimeter of said trailingend within a plane of said trailing end, each of said gaps being sufficient to retain a trailing end of a respective bone screw.

170. The implant of claim 169, wherein said implant is a fusion implant.

171. The implant of claim 169, wherein said trailing end is curved.

172. The implant of claim 169, wherein said implant has a height equal to the distance between the adjacent vertebral bodies of a surgically corrected disc space.

173. The implant of claim 169, wherein at least one of said bone screw receiving holes passes through said exterior surface and one of said edges and is C-shaped in cross section.

174. The implant of claim 169, wherein at least one of said bone screw receiving holes passes through said exterior surface and one of said edges and has a partial circumference intersecting with the outer perimeter of said trailing end.

175. The implant of claim 169, wherein said trailing end is relieved to allow for a head of a bone screw inserted into one of said bone screw receiving holes to be at least partially recessed.

176. The implant of claim 169, wherein said trailing end is adapted to orient bone screws to be received therein at an angle to a horizontal mid-longitudinal plane of said implant passing through said leading and trailing ends.

177. The implant of claim 176, wherein said at least two bone screw receiving holes includes a pair of screw receiving holes along said upper edge and a pair of screw receiving holes along said lower edge, one of said pair of bone screwreceiving holes being adapted to position at least two bone screws in a convergent relationship to one another.

178. The implant of claim 177, wherein the other of said pair of bone screw receiving holes is adapted to position at least two other bone screws in a divergent relationship to one another.

179. The implant of claim 169, further comprising at least one lock for retaining a bone screw within said implant.

180. The implant of claim 179, wherein said at least one lock retains a plurality of bone screws to said implant.

181. The implant of claim 169, further comprising at least one bone screw having a leading end for placement in the vertebral body and a trailing end opposite said leading end adapted to cooperatively engage said implant so as to prevent furtheradvancement of said at least one bone screw into the bone and to be retained of said implant.

182. The implant of claim 169, wherein said implant comprises one of bone and bone growth promoting material.

183. The implant of claim 182, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

184. The implant of claim 169, wherein said implant comprises at least one of the following materials: metal, titanium, plastic, and ceramic.

185. The implant of claim 169, wherein said implant has an interior surface and a hollow defined therein, said hollow being capable of containing bone growth promoting material.

186. The implant of claim 185, wherein said bone growth promoting material is at least one of bone morphogenetic protein, hydroxyapatite, and genes coding for the production of bone.

187. The implant of claim 169, in combination with a chemical substance to inhibit scar formation.

188. The implant of claim 169, further in combination with a fusion promoting substance.

189. The implant of claim 188, wherein said fusion promoting substance is bone morphogenetic protein.

190. The implant of claim 188, wherein said fusion promoting substance includes hydroxyapatite.

191. The implant of claim 188, wherein said fusion promoting substance is genes coding for the production of bone.

192. The implant of claim 188, wherein said fusion promoting substance is bone.

193. The implant of claim 169, in combination with a bone removal device for forming an implantation space at least in part between the adjacent vertebral bodies for receiving at least a portion of said implant.

194. The implant of claim 193, wherein said bone removal device is a milling instrument.

195. The implant of claim 193, in combination with an implant driver configured to insert said implant at least in part into the implantation space formed by said bone removal device.

196. The implant of claim 169, in combination with an instrument for forming a bone screw receiving hole into one of the vertebral bodies.

197. The implant of claim 196, wherein said instrument is one of an awl, a spike, and a drill.

198. The implant of claim 196, in combination with a guide having an end configured to cooperatively engage said trailing end of said implant to guide said instrument through one of said bone screw receiving holes of said implant.

199. The implant of claim 169, in combination with a screw driver configured to install at least one bone screw into said bone screw receiving holes and into the bone of a vertebral body.

200. The implant of claim 169, wherein each of said bone screw receiving holes is configured to position one bone screw therein at an angle to a vertical mid-longitudinal plane of said implant passing through said leading and trailing ends ofsaid implant.


Description BACKGROUND OF THE INVENTION

Implants adapted for use in the lumbar spine and the thoracic spine become much less usable in the cervical spine because of differences in anatomy. In the lumbar spine, the disc spaces are about 25% as tall as the vertebral bodies (i.e., thevertebral bodies are generally four times taller than the intervening disc space). In the cervical spine, the disc space can be 50% of the height of the vertebral bodies. The disc spaces in the cervical spine are generally not greater than 7 or 8 mmtall in most people.

Screws generally used to secure an implant in the cervical spine typically have a diameter of between 4 and 5 mm. If two bone screws were to be inserted one each into each of the adjacent cervical vertebral bodies; and if one were to attempt tovertically oppose those two bone screws, this would not prove possible because the sum of the screw diameters would exceed the height of the implant. Such vertically aligned bone screws would require at least 10 mm of combined height for themselves plussufficient implant structure and further height sufficient to surround and retain them. Thus, altogether the two bone screws and the surrounding implant would have to have a combined height that would substantially exceed the height of the disc spaceand an implant adapted to fit therein.

Alternatively, one could try to place a number of bone screws more horizontally (side-by-side) so as to avoid the problems described above associated with vertical alignment. To provide for the preferred implant stability that the use of pairedscrews would provide (two each into each of the adjacent vertebral bodies), one could horizontally align four bone screws on the equator of the implant with two of the bone screws directed toward one of the cervical vertebral bodies and two of the bonescrews directed toward the other of the adjacent cervical vertebral bodies. Four such horizontally aligned bone screws having a head diameter of 5 mm each would require at least 20 mm for the screw heads alone. Further, with sufficient implantstructure to surround each of those screw heads, the implant width would at a minimum be about 24 mm, which would exceed the desirable implant width for most cervical disc spaces. Staggering the bone screw receiving holes would be of some benefit, butof itself not an adequate solution to the problem described where it is desirable to maintain some symmetry of the screws to each other, the vertebrae, and the implant.

One prior art solution to the aforementioned problem teaches extending the height of the trailing end of the implant to make it taller than the disc space. An example of this is a flanged implant. The flanged implant makes it possible to placescrews so that they can be vertically aligned and have sufficient structure of the implant to retain them. The flanged portion of the implant, however, extends outside of the disc space which may not be desirable in all circumstances. Further, theseflanged implants may not be usable when it is needed to fuse multiple levels of the spine.

Accordingly, there exists a need for a spinal implant adapted to provide the advantages of a flanged implant for placement and orientation of bone screws associatated therewith but without the flanged portion, or the necessity of the implantextending outside of the disc space.

SUMMARY OF THE INVENTION

The present invention is directed to an interbody spinal implant, such as but not limited to a spinal fusion implant, spacers, motion preserving implants, or others. The implant has opposed upper and lower surfaces, one each for contacting eachof the opposed vertebral bodies adjacent a disc space. The implant is adapted to cooperatively receive at least two opposed bone screws, at least one screw each for insertion into each of the vertebral bodies adjacent a disc space. The interbody spinalimplant is adapted to receive the bone screws through its trailing end and to allow for the passage of the leading end of the bone screws through at least a portion of the implant and out of the opposed upper or lower implant surfaces, one eachrespectively. The bone screws have a leading end, a shaft, threading upon the shaft, and a trailing end. The implant and the trailing end of the bone screw are adapted to cooperatively engage each other so as to prevent the further advance of the bonescrews through the implant. At least a portion of the perimeter of the trailing ends of at least some of the bone screws protrude beyond at least one of the opposed upper or lower implant surfaces.

In one preferred embodiment, the trailing end is configured to permit a portion of the head of at least one bone screw to protrude beyond the height of the perimeter of the trailing end. The trailing end of the implant includes at least one bonescrew receiving opening or hole that has a gap in the perimeter thereof for permitting at least a portion of the trailing end of a bone screw to protrude beyond the opposed upper or lower vertebral body engaging surfaces. The gap interrupts theperimeter of the bone screw receiving hole, so that the bone screw receiving hole has an incomplete perimeter or C-shape. The gap is sized such that it is less than half the diameter of the screw. By allowing the screws to each protrude over either theupper or lower edges of the implant trailing end, the upper and lower screws may be placed such that the maximum height of the implant trailing end is less than the sum of the maximum diameter of two bone screws adapted to be inserted in the bone screwreceiving holes. This permits the use of larger bone screws in the trailing end of the implant than would otherwise be possible. Further, though not so limited, the present invention allows bone screws of the optimal diameter to be inserted into and inpart through the implant and into the adjacent vertebral bodies without the necessity of a portion of the implant itself extending beyond the disc space and outside of the spine.

The trailing end of the implant is configured to permit the bone screws for insertion into each of the adjacent vertebrae to be angled relative to each other, the implant trailing end, and to the implant upper and lower surfaces. The opposedbone screws preferably pull the anterior aspects of the vertebral bodies together toward the implant. The bone screws preferably penetrate into a portion of the vertebral body closest to the disc space into which the implant is being installed so as notto interfere with bone screws from a second implant being installed in an adjacent disc space where consecutive levels of the spine are being fused. In a preferred embodiment, the trailing end is configured to lag the bone screws so as to compress thevertebral bodies together and to load the vertebral body implant interface to promote fusion.

In certain preferred embodiments, the screws subtend an angle with the upper and lower surfaces so as to keep them confined to the lower half of the vertebral body above or the upper half of the vertebral body below the disc space to be fused.

In other preferred embodiments, the trailing end of the implant is configured to allow screws that are originating at or close to the vertical midline of the trailing end of the implant to be directed outward, or divergently oriented; and screwsthat originate further from the vertical midline of the trailing end of the implant to be directed inward, or convergently oriented. The screws that are convergently oriented are directed to one vertebral body and the screws that are divergentlyoriented are directed to the other adjacent vertebral body. Such an arrangement permits such implants when inserted into adjoining disc spaces to have convergently oriented screws from one implant and divergently oriented screws from the other implantto be screwed into the same vertebral body and ensure that the screws do not interfere with one another. Such a configuration allows screws from different implants to pass each other within a vertebral body where both adjacent disc spaces are to befused.

In any of these embodiments it is preferred though not required that the screws be retained to the implant by “locking mechanisms” which may include any of those known to those skilled in the art including, but not limited to, those taught byapplicant, for example, U.S. Pat. No. 6,139,550, titled “Skeletal Plating System,” U.S. application Ser. No. 09/022,293 titled “Anterior Cervical Plating System, Instrumentation, and Method of Installation,” and U.S. application Ser. No. 09/565,392titled “Interbody Spinal Fusion Implants with Opposed Locking Screws”, all of which are incorporated herein by reference. The trailing end of the implant may be configured to receive bone screws such that they are constrained within the bone screwreceiving holes (i.e., fixing the trajectory of each bone screw), or left unconstrained within the bone screw receiving holes for allowing variable screw angles. If a locking mechanism is used, the screws may start out constrained within the bone screwreceiving holes and remain so when locked. Alternatively, the screws may start out unconstrained prior to locking them, and upon being locked, may be constrained by the screw lock or left unconstrained by the screw lock. Examples are described below.

If it is desired to have the bone screws constrained in the bone screw receiving holes then the bone screw receiving holes may be adapted to capture the screws. Preferably, an interference fit is formed between the wall of the bone screwreceiving hole and the screw to prevent the screws from moving within the bone screw receiving hole.

The screws may also be self-locking with cooperative mating threads between the screw head and the bone screw receiving hole. An example of a preferred self-locking bone screw may be found in applicant’s application Ser. No. 09/565,392 titled”Spinal Implant with Vertebral Endplate Engaging Anchor” incorporated herein by reference.

If it is desired that the bone screws are unconstrained then the bone screws may have a rounded head portion and/or a reduced neck diameter to permit movement of the bone screws so as to allow the angle between the implant and the bone screw tobe variable.

If it is desired to lock the bone screw, the locking mechanism may be adapted to leave the bone screw constrained or unconstrained by adapting the interior surface of the locking mechanism accordingly. For example, the end of a screw lock facinga screw head may be concave to accommodate a round screw head, thereby allowing an unconstrained screw to be locked to the implant, yet still permit variable screw angles relative to the implant. Alternatively, the locking mechanism may be configured toconstrain an unconstrained bone screw by having the lock forcefully bear upon the screw head.

Although bone screw locks are preferred, the invention is not so limited. Bone screws need not be locked to the implant, but simply may have, for example, a stop or shoulder for stopping the progress of a bone screw through the implant beyond acertain point along the bone screw length.

The bone screw heads are preferably but not necessarily flush or slightly below the exterior surface of the trailing end of the implant when fully installed so as not to substantially protrude therefrom as into delicate anatomical structures thatmay be present proximate the exterior surface of the trailing end of the implant.

The implant of the present invention is useful throughout the spine, including the cervical, thoracic, and lumbar portions, and depending upon the location, may be inserted from the anterior, posterior, or lateral aspects of the spine.

Many of the preferred embodiments of the present invention have one or more of the following advantages over the prior art. One advantage is a more shallow screw angle between the screw and the implant. A more shallow screw angle provides thescrews with additional anchoring force. The ability of the screw to anchor in the bone is proportional to the amount of threaded surface area. As the screw gets longer, its bite gets better. Therefore, a more shallow screw angle permits the screw tostay in a short height body longer.

Another advantage is that by starting with the screw close to the implant surface and having the screw exit the implant sooner, less of the screw will be in the implant, thereby providing more space within the implant for fusion promotingsubstances or other desired contents.

A further advantage is the accommodation of the trailing ends of bone screws within the depth of the disc space to reduce the risk of damage to adjacent delicate structures, including but not limited to proximate vascular and neurologicalstructures within the body. Parts of implants extending beyond the depth of the disc space may have a risk of damaging these adjacent delicate structures. It should be understood that the accommodation of the trailing ends of bone screws within thedepth of the disc space is a preferred embodiment only and that the invention is not so limited.

A further advantage is the ability of the bone screws to exit the implant quicker and engage an adjacent vertebral body. A trailing end of a bone screw that is closer to the equator of the implant (i.e., the horizontal mid-line of the trailingend) and further from the opposed upper or lower surfaces of the implant takes longer for the threaded portion of the screw to leave the implant. In contrast, the present invention in one or more preferred embodiments allows the threaded portion of abone screw to leave the implant sooner at a shallower angle and to thereby have additional threaded length than otherwise would be achieved if more of the threaded portion were within the trailing end of the implant.

While the above-described configurations are preferred for various advantages they do not in any way limit the breadth of the present invention, which is limited only by the claims.

BRIEF DESCRIPTION OF THE DRAWINGS

FIG. 1 is a trailing end perspective view of an embodiment of the spinal implant of the present invention.

FIG. 2 is a top plan view of the spinal implant of FIG. 1.

FIG. 3 is a side elevation view of the spinal implant of FIG. 1.

FIG. 4 is a trailing end elevation view of the spinal implant of FIG. 1.

FIG. 5 is a side elevation view of an embodiment of the spinal implant of the present invention shown being inserted into an implantation space formed across the disc space between two adjacent vertebral bodies of the spine shown in partialcross-section.

FIG. 6 is a side elevation view of a drill and drill guide for forming bone screw receiving openings into adjacent vertebral bodies corresponding to bone screw receiving holes in the trailing end of the spinal implant of the present inventionimplanted between two adjacent vertebral bodies shown in partial cross-section.

FIG. 7 is a top plan view of the spinal implant of FIGS. 1-4 in the inserted position with bone screws installed and one of the adjacent vertebral bodies shown.

FIG. 8 is a trailing end elevation view of the spinal implant of FIGS. 1-4 installed between two adjacent vertebral bodies shown in hidden line with the locking mechanisms in the unlocked position.

FIG. 9 is an exploded view of the spinal implant of FIG. 8 and a driver holder instrument and locking tool for installing and locking the implant.

FIG. 10 is a top plan view in partial cross-section of the spinal implant of FIG. 8 and bone screws installed between two adjacent vertebral bodies with the driver holder instrument and locking tool locking one of the locking mechanisms of theimplant in the inserted position with one of the adjacent vertebral bodies shown.

FIG. 11 is a trailing end elevation view of the spinal implant of FIG. 8 with the locking mechanisms shown locking all four bone screws to the implant.

DETAILED DESCRIPTION OF THE DRAWINGS

Reference will now be made in detail to the present preferred embodiments of this invention, examples of which are illustrated in the accompanying drawings. Similar reference numbers such as “102, 202” will be used throughout the drawings torefer to similar portions of different embodiments of the present invention.

As shown in FIGS. 1-4, a preferred embodiment of the spinal implant of the present invention is generally referred to by the numeral 100. As used herein, the term “implant” includes any device adapted for insertion between two adjacent vertebralbodies, for example only, spacers, bone dowels, and spinal fusion implants. Implant 100 has a leading end 102, an opposite trailing end 104, and sides 106 and 108 therebetween for connecting, spanning, or joining, ends 102, 104.

In a preferred embodiment, leading end 102 can be a portion of a circle and the implant width can be equal to that portion of the circle, or if a half circle, then the diameter of that circle. Alternatively, leading end 102 may be straight atleast in part, and for example the straight part can be at an approximately right angle to sides 106, 108 to form a generally rectangular or square shape. The configuration of the leading end of the implant of the present invention may be adapted tomatch the configuration of an implantation space formed across the disc space and into the adjacent vertebral bodies in accordance with U.S. Pat. No. 6,159,214 titled “Milling Instrumentation and Method for Preparing a Space Between Adjacent VertebralBodies” and applicant’s co-pending patent application Ser. No. 09/490,901 titled “Instrument and Method for Creating an Intervertebral Space for Receiving an Implant,” both of which are incorporated by reference herein.

Implant 100 has a vertebral body engaging upper surface 110 and an opposite vertebral body engaging lower surface 112. In a preferred embodiment, upper and lower surfaces 110, 112 may be convergent toward one another such that implant 100 isable to place the adjacent vertebral bodies in angular relationship to each other, for example, in lordosis. Upper and lower surfaces 110, 112 may have at least one opening 114 therethrough for permitting the growth of bone from adjacent vertebral bodyto adjacent vertebral body through implant 100.

Both ends 102 and 104 may include openings such as 116 so as to permit for the growth of bone and vascular access therethrough. Similarly, sides 106, 108 can include openings such as 118 for similar or other purposes. Implant 100 preferably hasan open interior 120 between sides 106, 108 to permit for the growth of bone from adjacent vertebral body to adjacent vertebral body therethrough. The implant 100 itself, any of its various surfaces, open interior 120 and/or any of its openings such as114, 116, 118, for example, can be coated with, or contain bone growth promoting materials, including but not limited to, bone, bone morphogenetic proteins, hydroxyapatite, genes coding for the production of bone, or any other material that intrinsicallyparticipates in the growth of bone from one of the adjacent vertebral bodies to the other of the adjacent vertebral bodies at the fusion site. Implant 100 may also be combined with a chemical substance to inhibit scar formation.

In a preferred embodiment, trailing end 104 has an exterior surface 122 and an interior surface 124. At least exterior surface 122 may be curved to conform to at least a portion of the natural curvature of the anterior aspect of the vertebralbodies. For example, exterior surface 122 may be concave in a horizontal plane, in a vertical plane, or biconcave in both the vertical and horizontal planes. Exterior surface 122 may, but need not, correspond to the configuration of interior surface124. In the preferred embodiment, exterior surface 122 is configured to eliminate sharp edges and corners to protect the adjacent delicate vascular and neurological structures within the body. For example, exterior surface 122 can be tapered at itsexterior edges and can have rounded corners. The shape of trailing end 104 itself may be generally quadrilateral, circular, or any other shape useful for the intended purpose.

Trailing end 104 includes bone screw receiving holes 126 for receiving bone screws 128 for securing implant 100 to the adjacent vertebral bodies. Bone screw receiving holes 126 include a gap 130 in the perimeter of bone screw receiving holes 126for permitting at least a portion of bone screw 128 to protrude beyond perimeter 132 of trailing end 104. Trailing end 104 may be straight, curved, or anatomically contoured. Gap 130 interrupts the perimeter of bone screw receiving holes 126, so thatbone screw receiving holes 126 have an incomplete perimeter or C-shape. At least one of the bone screw receiving holes 126 is adapted to cooperatively engage the trailing end of bone screw 128 to allow at least a portion of the perimeter of the trailingend of at least one of the bone screws to protrude beyond at least one of the opposed upper and lower implant surfaces.

As used herein, the trailing end of a bone screw includes not less than that portion of the bone screw at the end opposite the leading end of the screw adapted to cooperatively engage the implant to prevent its passage therethrough. The trailingend may include the head and/or shaft proximate to the head, for example, shaft 134 and head 138 as shown in FIG. 1. The bone screw heads are preferably but not necessarily flush or slightly below the exterior surface of the trailing end of the implantwhen fully installed so as not to protrude therefrom into anatomical structures that may be present proximate the exterior surface of the trailing end of the implant.

The trailing end of the implant may be configured to receive bone screws such that they are constrained within the bone screw receiving holes (i.e., fixing the trajectory of each bone screw), or left unconstrained within the bone screw receivingholes for allowing variable screw angles. Preferably, for a constrained configuration an interference fit is formed between the wall of the bone screw receiving hole and the screw to prevent the screws from moving within the bone screw receiving hole. Constrained screws may also be self-locking with cooperative mating threads between the screw head and the bone screw receiving hole.

If it is desired that the bone screws are unconstrained then the bone screws may have a rounded head portion and/or a reduced neck diameter to permit movement of the bone screws so as to allow the angle between the implant and the bone screw tobe variable.

Bone screws need not be locked to the implant, but simply may have, for example, a shoulder for stopping the progress of a bone screw through the implant beyond a certain point along the bone screw length. It is appreciated that all the bonescrews described herein may be self-tapping. Bone screw receiving holes 126 preferably contain a recessed portion 136 to accommodate screw head 138 so that screw head 138 does not substantially protrude away from the trailing end. Gap 130 is sized suchthat it is less than half the diameter of screw 128. By allowing screws 128 to protrude over edges 140, 142 of trailing end 104, upper and lower screws may be placed such that the maximum height H of trailing end 104 is less than the sum of the maximumdiameter of two bone screws adapted to be inserted in bone screw receiving holes 126.

Bone screw receiving holes 126 may be adapted to capture screws 128, thereby constraining the screws within trailing end 104. Alternatively, trailing end 104 can further include at least one locking mechanism 144 for locking the bone screws toimplant 100. Although bone screw locks are preferred, the invention is not so limited.

In the various embodiments of the present invention, locking mechanisms 144 and trailing end 104 may be configured to either rigidly capture bone screws 128 so that their positions are fixed, or alternatively allow for the screw angles to bevariable in an unconstrained state in which case the screw angles may remain variable when locked.

Locking mechanism 144 can be in the form of a screw or a rivet having a head for contacting and securing the bone screws to implant 100. Locking mechanism 144 may be capable of rotational movement relative to trailing end 104. Locking mechanism144 includes a tool-engaging portion 146 for moving locking mechanism 144 from an unlocked to a locked position.

As best shown in FIGS. 1 and 4, locking mechanism 144 further includes removed portions 148 permitting the installation of bone screws into bone screw receiving holes 126 while locking mechanism 144 is in the unlocked position. In a preferredembodiment, locking mechanisms 144 can turn 180 degrees to be fully tightened. Locking mechanisms 144 can turn in the same direction or counter to one another. The bottom of the head of locking mechanism 144 can be of various shapes and, for example,can be ramped or concave. Further, as taught in applicant’s application Ser. No. 09/565,392 titled “Spinal Implant with Vertebral Endplate Engaging Anchor”, the present invention may be adapted to receive self-locking screws.

Locks 144 can work either to constrain screws 128 by fixing their positions, or in the alternative by preventing screws 128 from backing out without fixing the screws position so that the screws can allow for settling of the disc space(dynamization).

It is appreciated that the present invention includes the use of other screw locking mechanisms and devices such as would be used in other plate/screw or implant/screw devices and as would be known to one of ordinary skill in the art.

As shown in FIG. 9, trailing end 104 further includes alignment holes 150, 152 and threaded engagement hole 153 for engaging alignment pegs 154 and threaded driver 155, respectively from a driver instrument described below. Any other means ofengaging the implant to assist in its insertion as would be known in the art is within the scope of the present invention.

A preferred origin and trajectory of bone screw receiving hole 126 is such that a surgeon can (but does not necessarily have to be able to) insert bone screws 128 through holes 126 to an optimal or desired depth without those bone screws crossinga plane bisecting the height of the adjacent vertebral body. An alternative embodiment may include top and bottom screws that are placed asymmetrically so as to be offset from one another so that the screws from such implants inserted into adjacent discspaces pass each other in an intermediate vertebral body without hitting one another. For example, an implant may have two bone screws in the trailing end toward the outer sides and projecting through the upper surface and one bone screw in the middleof the trailing end projecting through the lower surface.

As shown in FIG. 5, implant 100 is inserted into an implantation space formed across the disc space into the adjacent vertebral bodies. Implant 100 is installed with leading end 102 inserted first into the disc space.

As shown in FIG. 6, bone screw receiving holes 126 may be formed into the adjacent vertebral bodies with a drill 156 and a drill guide 158, an awl, or other device. Drill 156 has a bone removing end 160 and a shaft 162. Drill guide 158 has aleading end 164 adapted for insertion into one of bone screw receiving holes 126 of trailing end 104. Leading end 164 has a smaller dimension 166, a larger dimension 168, and a shoulder 170 corresponding to the reduced dimension portions of bone screwreceiving holes 126 that are configured to receive the head portion of bone screws 128. Drill guide 158 has an inner bore (not shown) that in one preferred embodiment is aligned with the central longitudinal axis of the bone screw receiving holes 126when leading end 164 is properly seated therein. If it is desired to vary the angle of drill guide 158 to bone screw receiving holes 126, the tip of drill guide 158 may be rounded. In the alternative, the drill guide may screw into the bone screwreceiving hole, or may attach to the implant by any other technique known in the art. Further, the openings into the bone may be formed with a spike or other device, or the screws may be inserted without first forming bores into the bone.

When drill guide 158 is seated within bone screw receiving hole 126, drill 156 passes through the inner bore to form a bone screw receiving opening into the bone of the adjacent vertebral bodies corresponding in alignment to bone screw receivingholes 126. In the preferred embodiment, bone screw receiving openings 126 are formed in the bone located at or proximate the junction of the two cortices of the vertebral bodies.

In the spinal implant of the present invention, the bone screws can be oriented in an angular relationship to each other so as to be divergent along the vertical plane of the implant when installed into the adjacent vertebral bodies. Thepreferred angular divergence from the implant surface is preferably 25.degree.-40.degree., but any angle useful for the intended purpose is within the scope of the present invention. In a preferred embodiment, screws 128 are angled such that they do notextend beyond half the height of the adjacent vertebral body. This ensures that screws of one implant will not contact the screws of an implant inserted in a neighboring disc space.

In the implant of the present invention, if lag screws are utilized or if there is a lagging implant to screw relationship, then the adjacent vertebral bodies are pulled toward implant 100 as bone screws 128 are installed into the vertebral boneto create a compressive load on the implant. Further, the angling of bone screws 128, keeps the anterior portion of the adjacent vertebral bodies together during extension movement of the spine such as would occur when a patient leans backwards. Amongthe many advantages of the present invention, the anterior portions of the vertebral bodies adjacent implant 100 do not move apart as they are held in place by bone screws 128 inserted through trailing end 104, the back of the implant is not driven intothe vertebral bodies with spinal extension, and the compressive load is safely distributed over the entire length of the interbody portion of the implant.

FIG. 7 shows a top plan view of implant 100 installed within the disc space between two adjacent vertebral bodies and bone screws 128 installed in trailing end 104. In a preferred embodiment, bone screws 128 are toed-in toward each other. It isappreciated, however, that bone screws 128 need not be toed-in but may be parallel, diverging, or have any other desired orientation to one another. It is further appreciated that only a single screw or three or more screws can be used to secure theimplant to each of the adjacent vertebral bodies instead of the two screws shown in FIG. 7.

FIG. 8 is a trailing end elevation view of spinal implant 100 installed between two adjacent vertebral bodies with locking mechanisms 144 shown in the unlocked position and bone screws 128 in place. Upper bone screws 128 are converging whilelower bone screws 128 are diverging. If two such implants are placed into consecutive disc spaces, converging upper bone screws 128 of one implant and diverging lower bone screws 128 of the other implant would not interfere with each other because ofthe difference in angulation of the respective bone screws.

As shown in FIG. 9, implant 100 can be installed with driver instrumentation 172 for both holding the implant so as to be useful for insertion and for preventing torquing of the implant when the locks are secured in their locked position. Driverinstrumentation 172 has a blocker portion 174 for cooperatively engaging trailing end 104 of implant 100. Blocker 174 has a leading arcuate surface 176 that may be configured to conform at least in part to the contour of trailing end 104. Driverinstrumentation 172 has a shaft 178 extending from blocker 174 with of an inner bore 180 along the longitudinal axis of shaft 178. Extending from blocker 174 are a pair of alignment pegs 154 and threaded driver shaft 155 for cooperatively engagingalignment holes 150, 152 and threaded hole 153, respectively, in trailing end 104. Blocker 174 has openings 182 that are coaxially aligned with locking mechanisms 144, respectively. Openings 182 are configured to receive a locking tool 184 therethroughfor accessing and operating locking mechanisms 144. Instrumentation 172 allows the surgeon to tighten locking mechanisms 144 against the blocker 174 instead of torquing the spine of the patient.

Driver instrument 172 and blocker 174 are shown as an example of insertion instrumentation with the understanding that any inserter or a blocker or combined inserter and blocker known to one of ordinary skill in the art and useful for theintended purpose is within the scope of the present invention.

FIG. 10 shows a top plan view in partial cross-section of spinal implant 100 installed between two adjacent vertebral bodies and coupled to the driver instrumentation 172 with tool 184 (such as a screw driver) shown locking the locking mechanism144 (a rivet) to secure bone screws 128 to trailing end 104. It is appreciated that locking mechanism 144 could be a rivet, screw, or the like.

FIG. 11 is a trailing end elevation view of spinal implant 100 installed between two adjacent vertebral bodies with locking mechanisms 144 shown in the locked position in the direction of the arrows to lock bone screws 128 to trailing end 104. It should be understood that either clockwise or counter-clockwise rotational direction can be used for locking screws 128.

Other embodiments of the invention will be apparent to those skilled in the art from consideration of the specification and practice of the invention disclosed herein. It is intended that the specification and examples be considered as exemplaryonly, with a true scope and spirit of the invention being indicated by the following claims.
